BF 30 N Super milling & drilling machine with table feed Bernardo 02-10430
The model BF 30 N Super is an upgrade of the approved classic KF 25 Vario. The spindle taper is now even bigger, the table is larger and it is serially equipped with two digital displays, showing speed (50 - 3000 rpm) and spindle stroke. In addition, this model features stepless speed adjustment as well as a tiltable mill head from -90° to +90°.
Properties
- Many possible applications, such as groove milling, face milling, reboring etc.
- Digital speed and spindle stroke indicator included as standard equipment
- 2-step gear unit for optimal power transmission
- Serially equipped with left and right turning, ideal for thread cutting
- Direct current motor for ideal torque at lower speed
- Dovetail guiding for the x-, y- and z-axis, adjustable via gibs
- High-quality bearings guarantees high spindle concentricity (≤0.015 mm)
- Mill head tiltable to both sides for angular boring, milling of bevels etc.
- Large, surface treated cross table
- Handle for spindle adjustment, handwheel for fine feed
Standard accessories

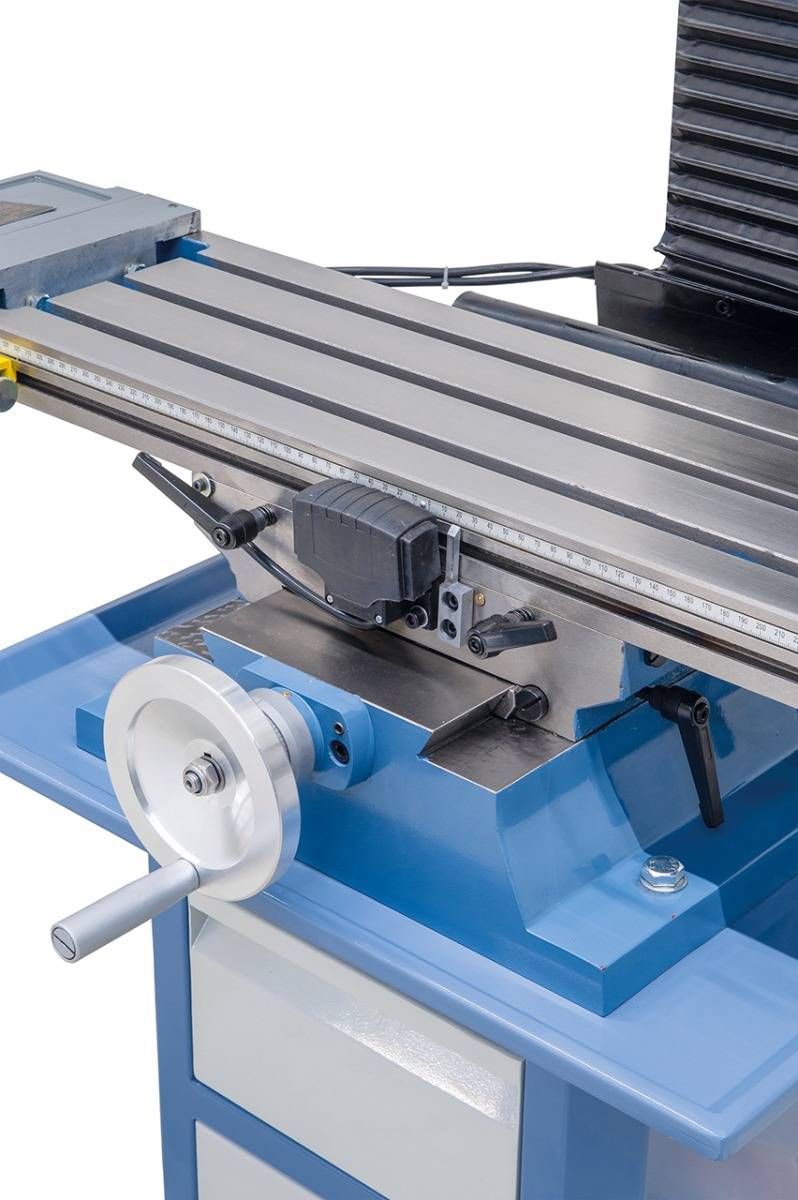

- x-axis power feed AL 350 D
- Keyless drill chuck 1 - 16 mm / B 16
- Drill chuck arbor MT 3 / B 16
- Drawbar M 12
- Digital speed indicator
- Digital spindle stroke indicator
- EMC filter according to CE standard
- Height adjustable protective cover
- Tools
Technical specifications
|
Drilling capacity in steel |
30 mm |
|
Face mill capacity max. |
75 mm |
|
End mill capacity max. |
25 mm |
|
Distance spindle to column |
180 mm |
|
Distance spindle to table |
115 - 465 mm |
|
Spindle stroke |
70 mm |
|
Spindle speed, stepless |
50 - 1100 / 150 - 3000 rpm |
|
Spindle taper |
MT 3 |
|
Table size |
840 x 210 mm |
|
Travel (x / y) |
455 / 195 mm |
|
Mill head tiltable |
-90° to +90° |
|
Height adjustment of mill head |
350 mm |
|
T-slot size |
14 mm |
|
Motor power output S1 100% |
1,1 kW / 230 V |
|
Motor power input S6 40% |
1,6 kW / 230 V |
|
Machine dimension (W x D x H)* |
1350 x 710 x 1200 mm |
|
Weight approx. |
222 kg |
* without stand
