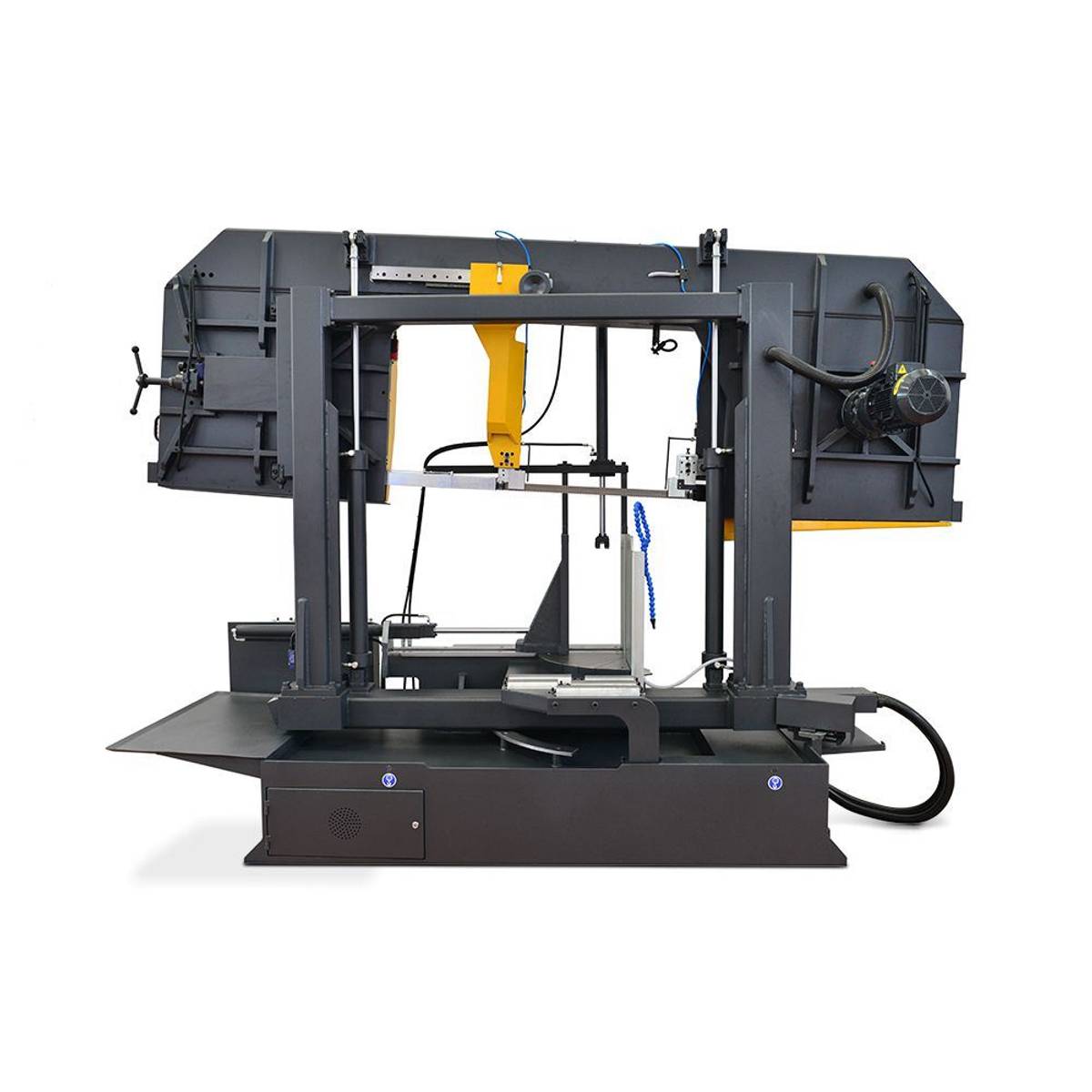

BMSY 810 CGH semi automatic bandsaw Bekamak
Horizantal Bandsaws with linear guideways are ideal for mitre cuts with different quantities . With movement of bow it’s possible to cut between 90° and +60°. Cutting capacity at 90° is 910mm x 750mm for flat type and 810 mm for round shaped materials. With auto height adjustment sensors bow approachs the material with fast speed and hydraulic cutting control allows the bow go up over the material after the cut. Fixing the bow at any angle is controlled by hydraulical brake system and you can control it by another digital counter placed on main body of machine.
|
|
Angle: |
Circle: |
Rectangel: |
Square: |
|
Cutting Capacity |
0° |
810 mm |
910 x 750 mm |
770 mm |
|
+30° |
760 mm |
750 x 740 mm |
740 mm |
|
|
+45° |
600 mm |
750 x 600 mm |
600 mm |
|
|
+60° |
360 mm |
750 x 360 mm |
360 mm |
|
Main Drive Motor |
4 kW |
|
Hydraulic Motor |
1,5 kW |
|
Coolant Pump |
0,12 kW |
|
Cutting Speeds |
20 - 100 m/min. |
|
Band Dimensions |
8400x41x1,3 mm |
|
Working Height |
725 mm |
|
Weight |
4050 kg |
|
Length |
4020 mm |
|
Width |
1600 mm |
|
Height |
2450 mm |
Standard Features
- Digital Angle Display
- Inverter
- Lineer Way
- Sensitive Pressure
- Hyd. Clamping for Angle
- Control Panel
- Saw Blade 41
- Hydraulic Vice
- Heavy Duty Gearbox
- Hydromechnic Blade Tension
- Security Switch
- Saw Blade Brush
- 3 inclined Blade
- Optical Height Adjustment
- Coolant Pump
Optional Features:
- ILC Microspray Device
- Hydraulic Blade Tension
- Lazer Line Pointer
- 3 Mt Motorized Roller Table
- 3 Mt Material Roller Table
- Chip Conveyor
- Hydraulic Top Clamping
