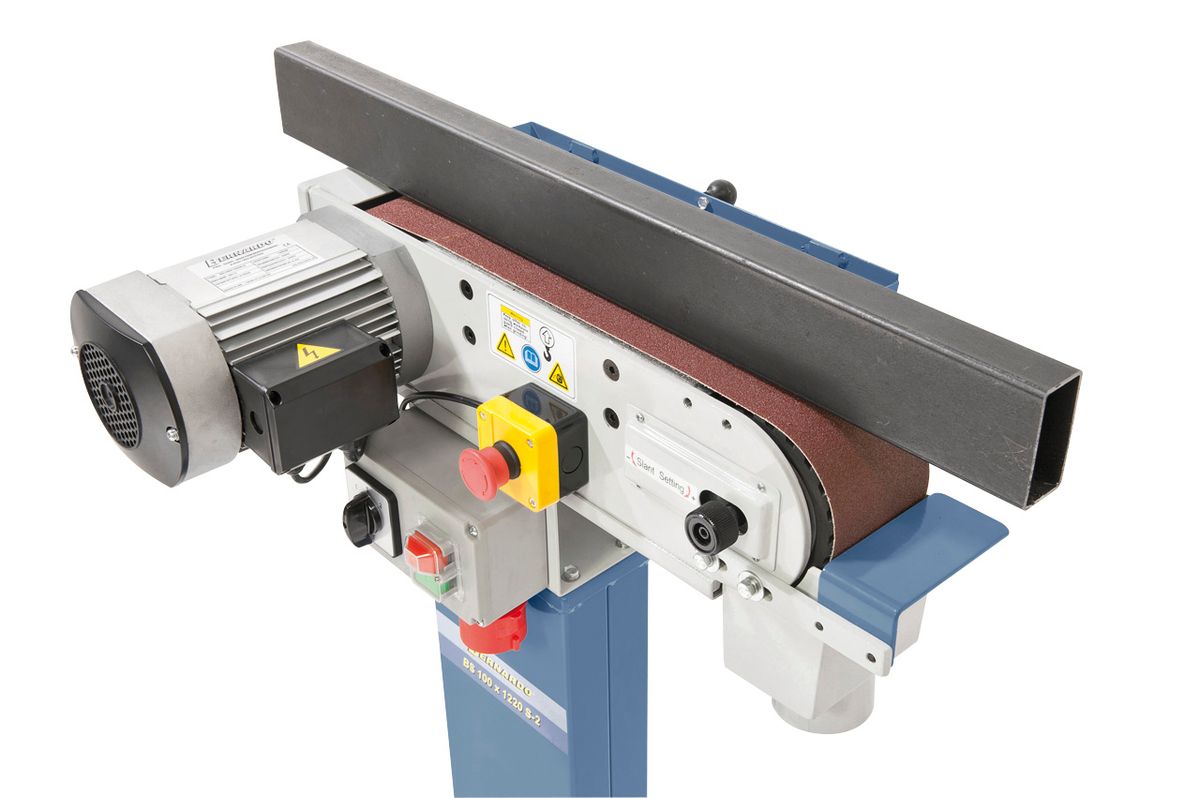

BS 100x1220 S-2 Belt sanding machine 400V Bernardo 05-1238
PROPERTIES
- Balanced discs ensure vibration-free run
- Comes complete with 2 speed settings, optimal for grinding of stainless steel
- Time-efficient chamfering of edges, fettling of welded joints
- Motor protective switch according to IP54 including low-voltage release
- Powerful drive and belt speed
- User-friendly belt change, quick and easy
- Large grinding surface, adjustable fence for universal use
- Solid and vibration-free construction
- Machine base included
- Fine adjustment for parallel belt run as standard
TECHNICAL SPECIFICATIONS
|
Belt dimensions |
100 x 1220 mm |
|
Belt speed |
9,5 / 19 m/sec. |
|
Contact disc ø x W |
125 / 100 mm |
|
Belt sanding table |
285 x 105 mm |
|
Dust extraction outlet |
75 mm |
|
Motor power output S1 100% |
1,0 / 1,5 kW |
|
Motor power input S6 40% |
1,35 / 2,2 kW |
|
Voltage |
400 V |
|
Length |
690 mm |
|
Width |
400 mm |
|
Height |
940 mm |
|
Weight approx. |
41 kg |
STANDARD ACCESSORIES
- Sanding belt grit 80
- Workpiece fence
- Dust extraction outlet
- Motor protective switch
- User manual
- Foldable protective glass
- Machine base
- Sanding and support table
- Separate emergency stop switch
Bernardo er et selskap fra Østerrike som har drevet salg av maskiner siden 1979. De har et stort lager på 7000m2 med mye maskiner og utstyr på lager for rask levering. De har stort utvalg av dreiebenker, boremaskiner, freser, platemaskiner, sager og mye mer.! De har også stort delelager for rask levering.
LTS Maskin er Bernardo sin hovedleverandør i Norge og vi kan levere alt av deres produktregister.
Last ned katalog nedenfor:
Metallmaskiner:
Generell katalog: EN
Platemaskiner
Generell katalog: EN
Tremaskiner
Generell katalog: EN
Bernardo leveres standard med 3x400v om ikke annet er spesifisert.
Riktig maskin til hvert bruk (se etter merkene nedenfor):
Hobby
Max. 150 h / year
Average usage:
2 h / day or 25% duty cycle
Semi-Professional
Max. 300 h / year
Average usage:
3 h / day or 50% duty cycle
Professional
Max. 600 h / year
Average usage:
3 h / day or 90% duty cycle
Industry
Max. 1500 h / year
Average usage:
8 h / day or 90% duty cycle
