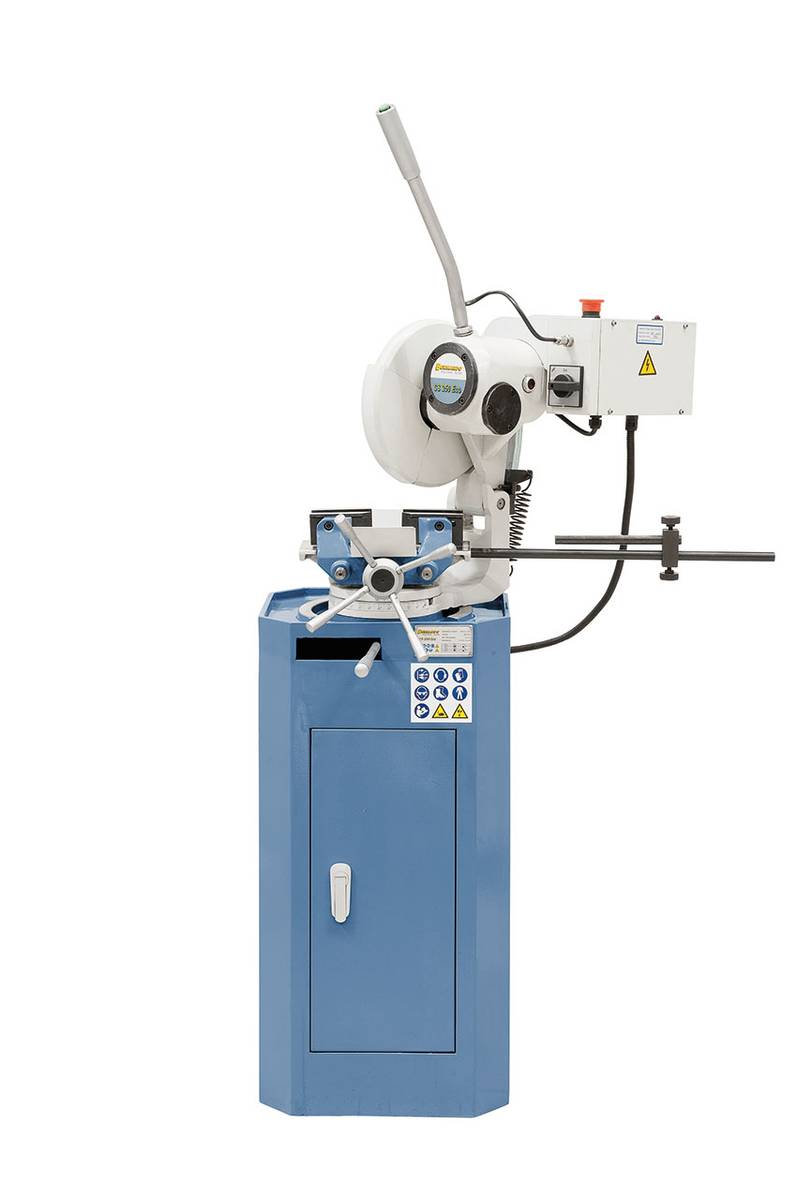

CS 250 eco cold circular saw 230 V Bernardo 04-1838
The manual assembling saw CS 250 eco offer an Attractive price-to-performance ratio for price conscious users. The solid construction, precise cutting results and high user friendliness make these machines essential for do-it-yourselfer as well as for building sites and assembly works.
Properties
- Gear head swings 45 degrees left and right for mitre cutting
- Gear unit features hardened, polished worm shaft and bronze worm wheel
- Ideal for cutting of steel, light metals and plastics
- Ergonomically shaped handle with push button for high work comfort
- Reduction gear unit, quietly running in oil bath
- Precise, self-centering double-clamping vice positioned on four guidings
- Protective cover opens automatically when cutting
Standard accessories
- Coolant device with filter
- Stand
- Material fence
- Self-centering vice
Technical specifications
|
Sawblade dimension |
250 x 32 mm |
|
Speed |
64 rpm |
|
Max. opening |
110 mm |
|
Working height |
880 mm |
|
Motor power output S1 100% |
0,75 kW |
|
Motor power input S6 40% |
1,1 kW |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
825 x 700 x 1560 mm |
|
Weight approx. |
85 kg |
|
|
Full material round |
Round tube |
Shaped tube square |
Shaped tube rectangular |
|
90° |
50 mm |
60 mm |
60 × 60 mm |
35 × 70 mm |
|
45° |
45 mm |
60 mm |
60 × 60 mm |
35 × 70 mm |
Bernardo er et selskap fra Østerrike som har drevet salg av maskiner siden 1979. De har et stort lager på 7000m2 med mye maskiner og utstyr på lager for rask levering. De har stort utvalg av dreiebenker, boremaskiner, freser, platemaskiner, sager og mye mer.! De har også stort delelager for rask levering.
LTS Maskin er Bernardo sin hovedleverandør i Norge og vi kan levere alt av deres produktregister.
Last ned katalog nedenfor:
Metallmaskiner:
Generell katalog: EN
Platemaskiner
Generell katalog: EN
Tremaskiner
Generell katalog: EN
Bernardo leveres standard med 3x400v om ikke annet er spesifisert.
Riktig maskin til hvert bruk (se etter merkene nedenfor):
Hobby
Max. 150 h / year
Average usage:
2 h / day or 25% duty cycle
Semi-Professional
Max. 300 h / year
Average usage:
3 h / day or 50% duty cycle
Professional
Max. 600 h / year
Average usage:
3 h / day or 90% duty cycle
Industry
Max. 1500 h / year
Average usage:
8 h / day or 90% duty cycle
