Standard 165 Top lathe Bernardo 03-1260
The Standard 165 Top precision lathe feature a solid construction and practicality. Making this model truly versatile is the standard equipment which comprises all major accessories such as 3-axis digital readout, rests, LED-machine lamp and safety precautions in accordance with CE-standards. In addition, this model comes complete with a quick-change tool post holder.
Properties
- Entire range of equipment: 3-axis digital readout, LED machine lamp, machine stand and many more
- Practical machine with leadscrew and feed rod for thread cutting and automatic feed
- Removable bridge allows processing of workpieces of large diameter
- Solid prism-shaped machine bed features additional reinforcements to keep vibrations to a minimum
- Clearly arranged speed and feed control settings, smooth operation and accurate control
- Strongly reinforced prism-shaped machine bed features induction hardened and polished guiding
- Hardened and polished main spindle, saturated in oil
- Removable tailstock for taper turning, handwheel features adjustable fine scale (0.04mm)
- Extractable chip tray minimizes space requirements
Standard accessories
- 3-axis digital readout ES-12 V with LCD-display
- 3-jaw chuck DK11-160 mm / D4
- Independent chuck 200 mm / D4, according DIN 55029
- Steady rest – Passage up to 60 mm
- Follow rest – Passage up to 60 mm
- Face plate 250 mm

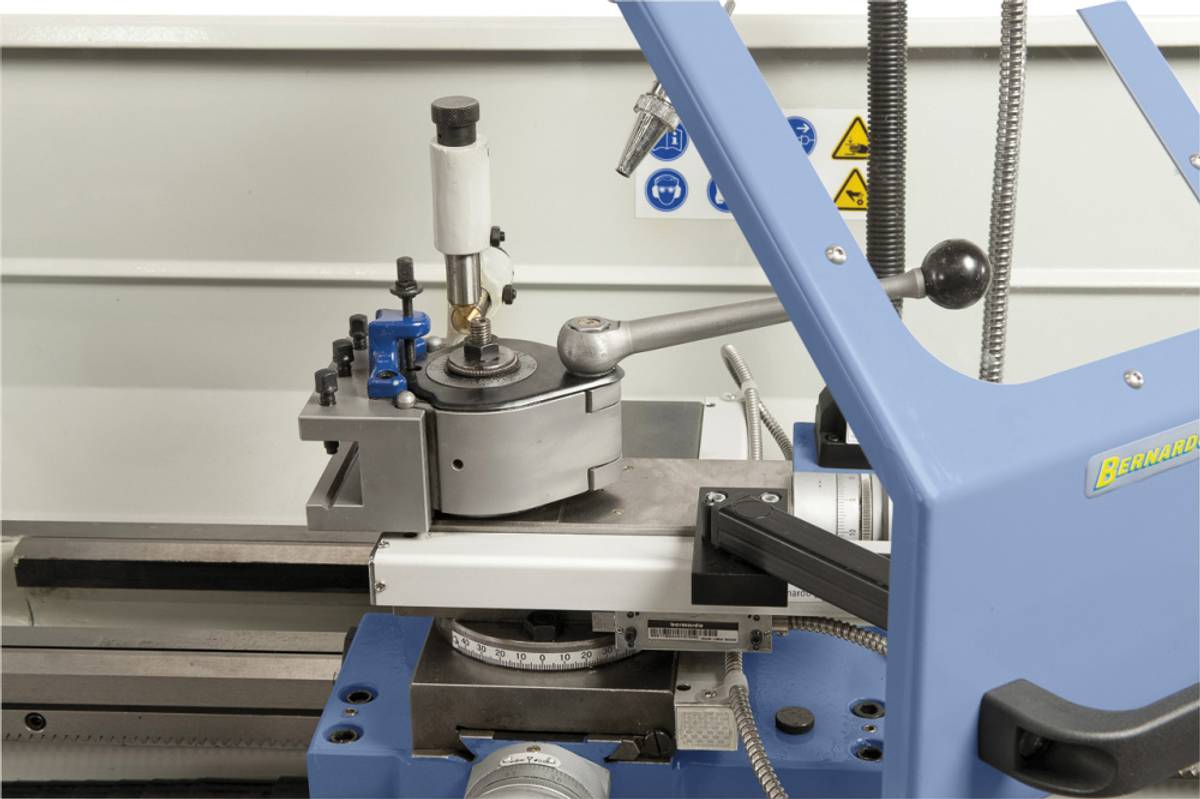

- Quick change tool post holder System Multifix with 4 insters
- Protective device at tool holder
- Safety clutch
- Micrometer longitudinal fence
- Coolant device
- Extractable chip tray
- Motor with magnetic brake according CE
- Foot pedal with brake function according CE
- Splash guard
- Thread dial
- LED machine light
- Morse taper drill sleeve
- Change gears
- 2 dead centers
- Stand
- Tools
Technical specifications
|
Distance between centers |
1000 mm |
|
Center height |
175 mm |
|
Swing over bed |
350 mm |
|
Swing over gap* |
450 mm |
|
Swing over cross slide |
190 mm |
|
Bed width |
180 mm |
|
Spindle bore |
40 mm |
|
Spindle nose fixture |
DIN 55029, D1-4 |
|
Speed range |
(8) 70 - 2000 rpm |
|
Longitudinal feed |
(40) 0,053 - 1,29 mm/rev |
|
Cross feed |
(40) 0,013 - 0,31 mm/rev |
|
Metric thread |
(32) 0,4 - 7 mm |
|
Inch thread |
(36) 4 - 60 threads/1“ |
|
Travel of tailstock sleeve |
110 mm |
|
Taper of tailstock sleeve |
MT 3 |
|
Motor power output S1 100% |
1,5 kW (400 V) |
|
Motor power input S6 40% |
2,2 kW (400 V) |
|
Machine dimension (W x D x H) |
1730 x 700 x 1340 mm |
|
Weight approx. |
515 kg |
|
|
|
* Removable bed length: 220 mm
https://www.bernardo.at/de/standard-165-d.html
Bernardo er et selskap fra Østerrike som har drevet salg av maskiner siden 1979. De har et stort lager på 7000m2 med mye maskiner og utstyr på lager for rask levering. De har stort utvalg av dreiebenker, boremaskiner, freser, platemaskiner, sager og mye mer.! De har også stort delelager for rask levering.
LTS Maskin er Bernardo sin hovedleverandør i Norge og vi kan levere alt av deres produktregister.
Last ned katalog nedenfor:
Metallmaskiner:
Generell katalog: EN
Platemaskiner
Generell katalog: EN
Tremaskiner
Generell katalog: EN
Bernardo leveres standard med 3x400v om ikke annet er spesifisert.
Riktig maskin til hvert bruk (se etter merkene nedenfor):
Hobby
Max. 150 h / year
Average usage:
2 h / day or 25% duty cycle
Semi-Professional
Max. 300 h / year
Average usage:
3 h / day or 50% duty cycle
Professional
Max. 600 h / year
Average usage:
3 h / day or 90% duty cycle
Industry
Max. 1500 h / year
Average usage:
8 h / day or 90% duty cycle
