The EBS 181 metal bandsaw allows quick and easy speed adjustment due to the 3-gear transmission. The machine is designed specifically for craftsmen and training workshops.
Properties
- Ideal for cutting of profiles, pipes, solid material etc.
- Quick clamping vice adjustable for mitre cutting up to 45°
- Bandsaw blade guides feature double ball bearings to ensure optimal run
- Cutting pressure adjustable via valve
- Automatic shut-down when cutting is finished

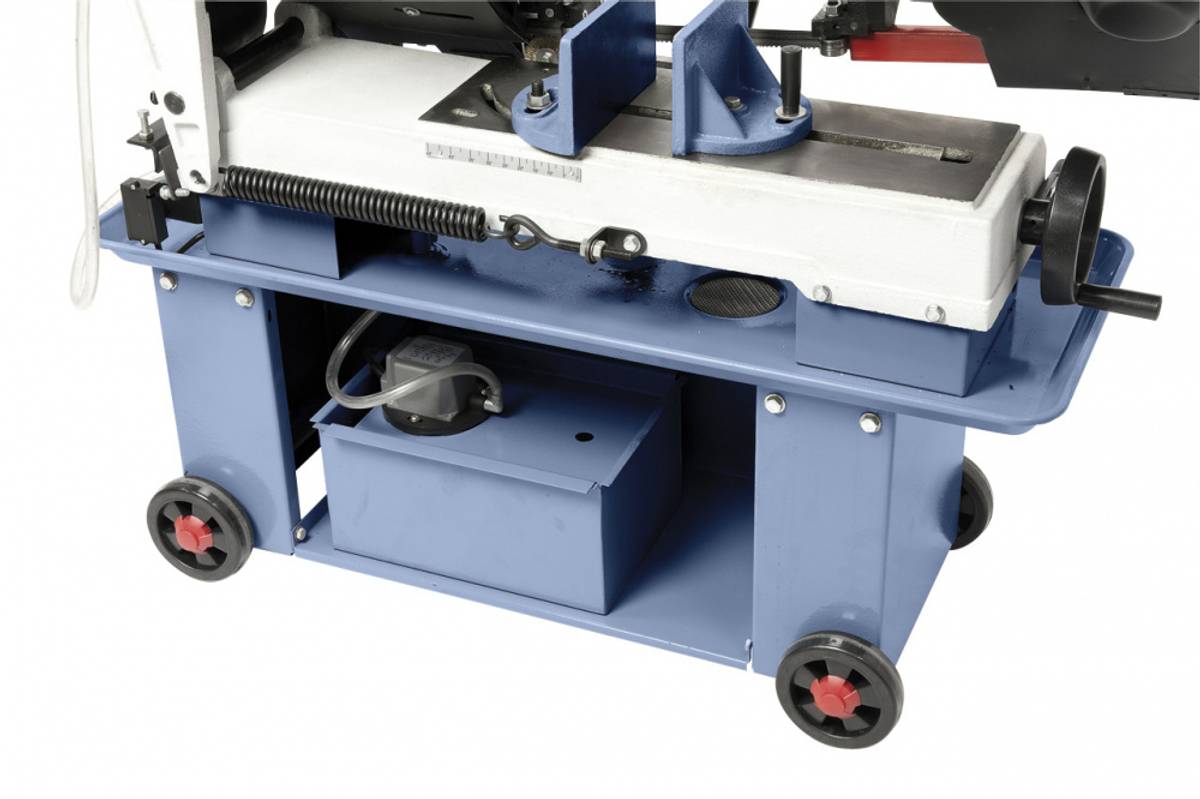

- Includes coolant device, which is stored inside the machine frame, requiring minimum space
- Smooth and vibration-free running for best results
- Torsion-free, solid cast iron saw frame
- Includes material fence for effective work
Standard accessories
- Bandsaw blade
- Coolant device
- Material fence
- Quick clamping vice
- Moveable machine base
- Motor protecting switch
- Hydraulic cylinder
- Separate emergency stop button according CE
Technical specifications
|
Cutting capacity round 90° |
180 mm |
|
Cutting capacity flat 90° |
180 x 210 mm |
|
Cutting capacity round 45° |
90 mm |
|
Cutting capacity flat 45° |
140 x 80 mm |
|
Working height |
550 mm |
|
Bandsaw blade dimensions |
2360 x 20 x 0,9 mm |
|
Cutting speeds |
34 / 41 / 59 / 98 m/min |
|
Coolant tank |
9 liter |
|
Coolant pump |
25 W |
|
Motor power output S1 100% |
0,75 kW |
|
Motor power input S6 40% |
1,1 kW |
|
Voltage |
400V |
|
Machine dimensions (L x D x H) |
1250 x 520 x 1000 mm |
|
Weight approx. |
130 kg |
Bernardo er et selskap fra Østerrike som har drevet salg av maskiner siden 1979. De har et stort lager på 7000m2 med mye maskiner og utstyr på lager for rask levering. De har stort utvalg av dreiebenker, boremaskiner, freser, platemaskiner, sager og mye mer.! De har også stort delelager for rask levering.
LTS Maskin er Bernardo sin hovedleverandør i Norge og vi kan levere alt av deres produktregister.
Last ned katalog nedenfor:
Metallmaskiner:
Generell katalog: EN
Platemaskiner
Generell katalog: EN
Tremaskiner
Generell katalog: EN
Bernardo leveres standard med 3x400v om ikke annet er spesifisert.
Riktig maskin til hvert bruk (se etter merkene nedenfor):
Hobby
Max. 150 h / year
Average usage:
2 h / day or 25% duty cycle
Semi-Professional
Max. 300 h / year
Average usage:
3 h / day or 50% duty cycle
Professional
Max. 600 h / year
Average usage:
3 h / day or 90% duty cycle
Industry
Max. 1500 h / year
Average usage:
8 h / day or 90% duty cycle
