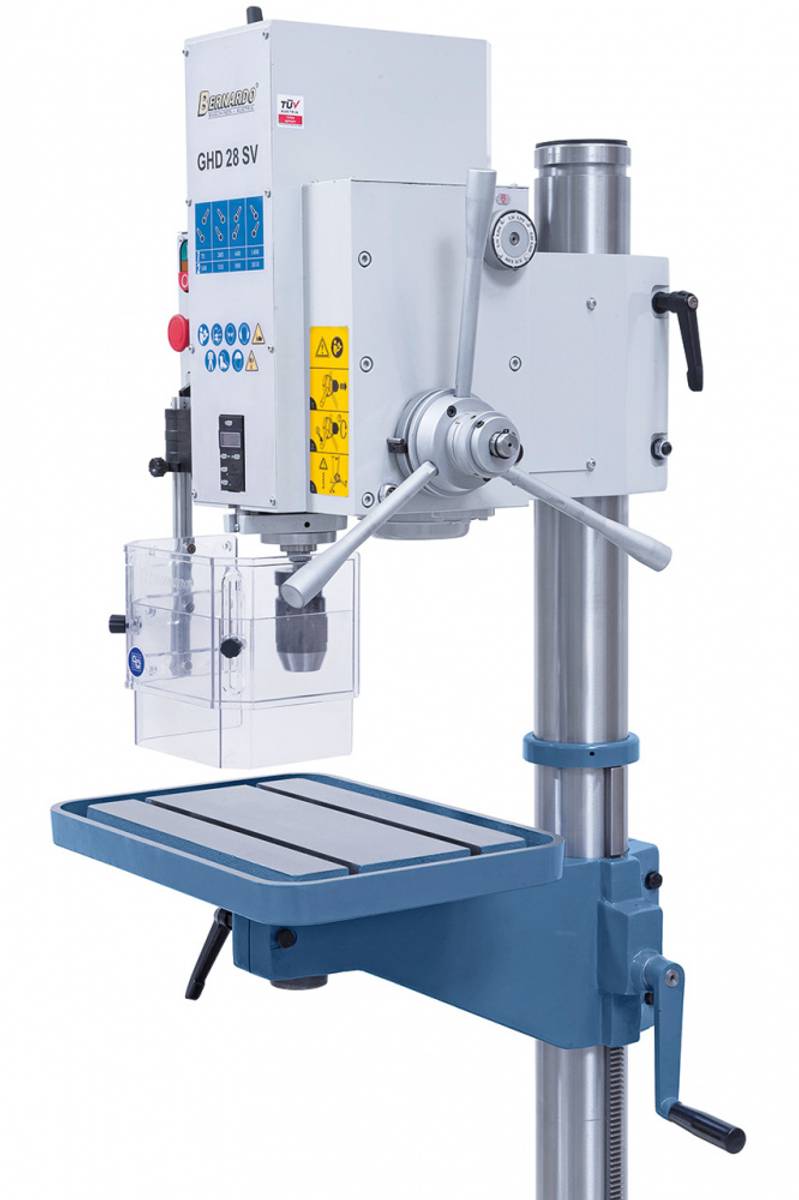

GHD 28 SV drilling machine Bernardo 01-1243B
The GHD 28 SV gearhead column drilling machine is an enhanced version of the GHD 25 SN, complete with right and left turning device as well as automatic drill feed. This model is predominantly used among professionals, in model making as well as in training.
Properties
- Digital display for drill depth increases comfort
- Automatic spindle feed (0.04 – 0.03 mm/ rev) comes standard
- Helical toothed gearsa allow for optimal transmission
- High efficiency and smooth run through helical gears in combination steel against reinforced fiber material
- Automatic spindle feed disconnects when reaching the adjusted drill depth
- Switch for rotation – right or left turning – for thread cutting
- Solid and polished steel column, designed for heavy workloads
- Quality ball bearings guarantee high concentricity
- Powerful 2-step motor offers 8 speed settings
Standard accessories
- Keyless drill chuck 1 - 16 mm / B 16
- Drill chuck arbor MT 3 / B 16
- Morse taper drill sleeve MT 3 / 2, MT 3 / 1
- Digital drill depth indication
- Automatic tool release device
- Left and right turning
- Height adjustable protective cover
Technical specifications
|
Drilling capacity max. |
28 mm |
|
Thread cutting max. |
M12 |
|
Keyless drill chuck |
1 - 16 mm / B 16 |
|
Morse taper |
MT 3 |
|
Spindle speeds |
(8) 75 - 3010 rpm |
|
Distance spindle to column |
320 mm |
|
Distance spindle to table max. |
810 mm |
|
Distance spindle to base |
1230 mm |
|
Spindle stroke |
150 mm |
|
Column diameter |
105 mm |
|
Working surface of base |
325 x 360 mm |
|
Table size / T-slot size |
500 x 350 mm / 14 mm |
|
Motor power output S1 100% |
0,90 / 1,2 kW (400 V) |
|
Motor power input S6 40% |
1,35 / 1,7 kW (400 V) |
|
Machine dimension (W x D x H) |
600 x 700 x 1900 mm |
|
Weight approx. |
290 kg |
Bernardo er et selskap fra Østerrike som har drevet salg av maskiner siden 1979. De har et stort lager på 7000m2 med mye maskiner og utstyr på lager for rask levering. De har stort utvalg av dreiebenker, boremaskiner, freser, platemaskiner, sager og mye mer.! De har også stort delelager for rask levering.
LTS Maskin er Bernardo sin hovedleverandør i Norge og vi kan levere alt av deres produktregister.
Last ned katalog nedenfor:
Metallmaskiner:
Generell katalog: EN
Platemaskiner
Generell katalog: EN
Tremaskiner
Generell katalog: EN
Bernardo leveres standard med 3x400v om ikke annet er spesifisert.
Riktig maskin til hvert bruk (se etter merkene nedenfor):
Hobby
Max. 150 h / year
Average usage:
2 h / day or 25% duty cycle
Semi-Professional
Max. 300 h / year
Average usage:
3 h / day or 50% duty cycle
Professional
Max. 600 h / year
Average usage:
3 h / day or 90% duty cycle
Industry
Max. 1500 h / year
Average usage:
8 h / day or 90% duty cycle
