Goliath 660 x 2000 lathe Bernardo 03-1355XL2
The Goliath 660 is a state-of-the-art, revolutionary manufacturing lathe. The wide range of standard equipment, such as the 3-jaw chuck, steady and follow rest, change gears and the 3-axis digital readout, 40 pos. tool post and holder set, make this model extremely versatile.
PROPERTIES
- Various possible applications in general machine construction, production, single part manufacturing etc.
- Machine bed, cast in one piece, eliminates torsion and vibrations, resulting in best possible accuracy
- State-of-the-art main spindle bearing with high-quality angular ball bearings
- Centrally positioned, practical feed controls and thread cutting controls (with leadscrew and feed rod)
- Complete with longitudinal and cross rapid feed to reduce downtime
- Large gear wheels, hardened and polished
- Removable bridge allows machining of oversize workpieces
- Tailstock can be repositioned for taper turning, handwheel feature adjustable scale (0.02 mm)
- Electro-mechanical foot brake keeps downtime to a minimum
- High performance even at face turning
TECHNICAL SPECIFICATIONS
|
Distance between centers |
2000 mm |
|
Center height |
330 mm |
|
Swing over bed |
660 mm |
|
Swing over gap* |
870 mm |
|
Swing over cross slide |
420 mm |
|
Bed with |
400 mm |
|
Spindle bore |
105 mm |
|
Spindle nose fixture |
DIN 55029, D1-8 |
|
Speed range |
(16) 36 - 1600 rpm |
|
Longitudinal feed |
(65) 0,063 - 2,52 mm/rev. |
|
Cross feed |
(65) 0,027 - 1,07 mm/rev. |
|
Metric thread |
(22) 1 - 14 mm |
|
Inch thread |
(26) 2 - 28 threads/1“ |
|
Diameter of tailstock sleeve |
75 mm |
|
Travel of tailstock sleeve |
150 mm |
|
Taper of tailstock sleeve |
MT 5 |
|
Motor power |
9,0 kW (12,0 HP) |
|
Machine dimension (W x D x H) |
3500 x 1280 x 1650 mm |
|
Weight approx. |
3750 kg |
* Removeable bed length: 240 mm
STANDARD ACCESSORIES
- Safety clutch
- Rapid feed longitudinal and cross
- LED machine light
- 3-axis digital readout ES-12 V with LCD-display

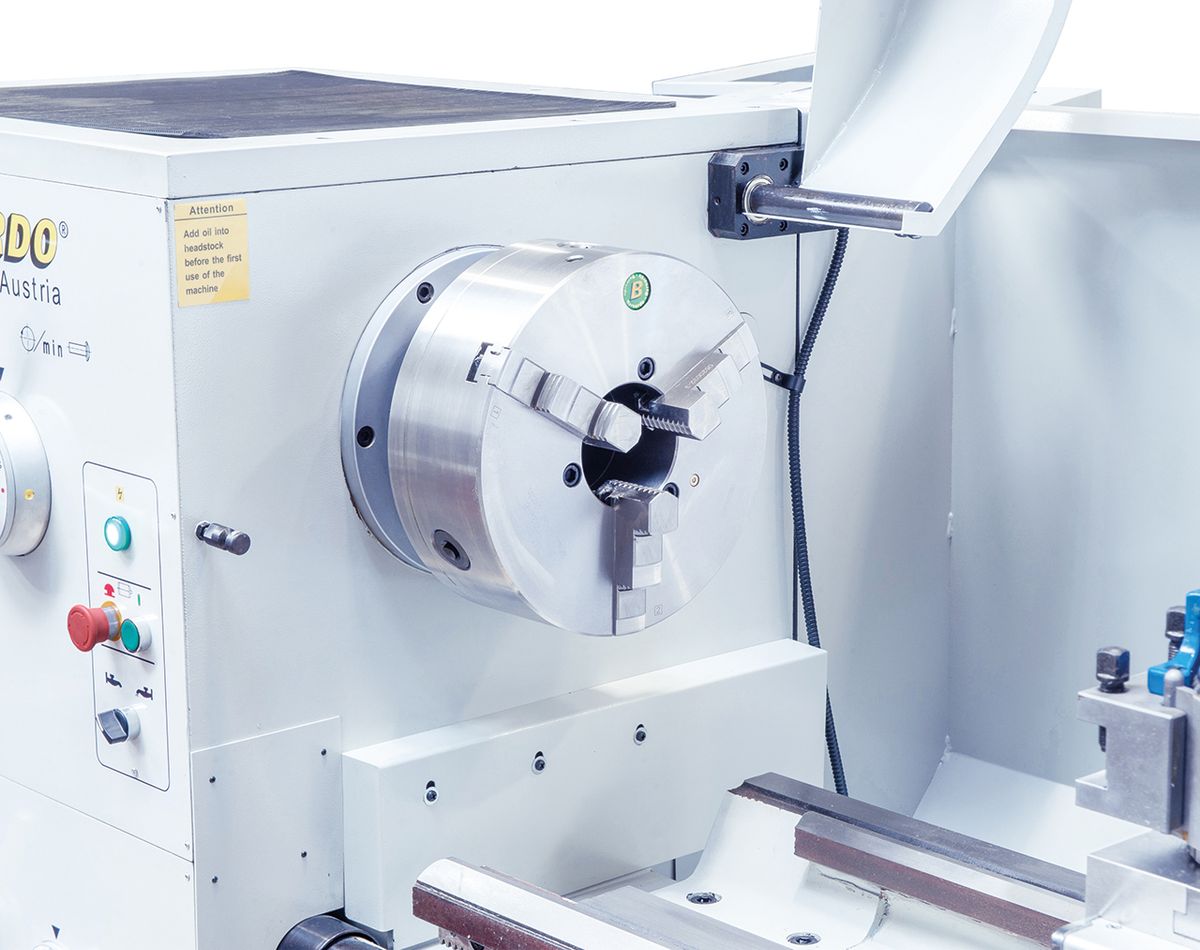

- 3-jaw chuck PS3-315 mm / D8
- Face plate 630 mm
- Steady rest - Passage up to max. 250 mm
- Follow rest - Passage up to max. 110 mm
- 1 dead center / 1 live center
- Motor with magnetic brake according to CE
- Foot pedal with brake function acc. to CE
- Initial filling with Shell Tellus 46
- Coolant device
- 40 pos. tool post and holder set with 4 inserts
- Protective device at tool post holder
- Morse taper drill sleeve
- Splash guard
- Tools
