Goliath 800 x 1000 lathe Bernardo 03-1364XL
The Goliath 800 is a state-of-the-art, revolutionary manufacturing lathe. The wide range of standard equipment, such as the 3-jaw chuck, steady and follow rest, change gears and the 3-axis digital readout, 40 pos. tool post and holder set, make this model extremely versatile.
27.500,00 €excl. VAT.
STOCK LEVEL
Not on stock
PROPERTIES
- Various possible applications in general machine construction, production, single part manufacturing etc.
- Machine bed, cast in one piece, eliminates torsion and vibrations, resulting in best possible accuracy
- State-of-the-art main spindle bearing with high-quality angular ball bearings
- Centrally positioned, practical feed controls and thread cutting controls (with leadscrew and feed rod)
- Complete with longitudinal and cross rapid feed to reduce downtime
- Large gear wheels, hardened and polished
- Removable bridge allows machining of oversize workpieces
- Tailstock can be repositioned for taper turning, handwheel feature adjustable scale (0.02 mm)
- Electro-mechanical foot brake keeps downtime to a minimum
- High performance even at face turning
TECHNICAL SPECIFICATIONS
|
Distance between centers |
1000 mm |
|
Center height |
420 mm |
|
Swing over bed |
840 mm |
|
Swing over gap* |
1060 mm |
|
Swing over cross slide |
280 mm |
|
Bed with |
400 mm |
|
Spindle bore |
105 mm |
|
Spindle nose fixture |
DIN 55029, D1-8 |
|
Speed range |
(16) 36 - 1600 rpm |
|
Longitudinal feed |
(65) 0,063 - 2,52 mm/rev. |
|
Cross feed |
(65) 0,027 - 1,07 mm/rev. |
|
Metric thread |
(18) 0,5 - 7 mm |
|
Inch thread |
(26) 2 - 28 threads/1“ |
|
Diameter of tailstock sleeve |
75 mm |
|
Travel of tailstock sleeve |
150 mm |
|
Taper of tailstock sleeve |
MT 5 |
|
Motor power |
9,0 kW (12,0 HP) |
|
Machine dimension (L x W. x H) |
2500 x 1520 x 1650 mm |
|
Weight approx. |
3570 kg |
* Removeable bed length: 200 mm
STANDARD ACCESSORIES
- Safety clutch
- Rapid feed longitudinal and cross
- LED machine light
- 3-axis digital readout ES-12 V with LCD-display
- 3-jaw chuck PS3-315 mm / D8
- Face plate 630 mm

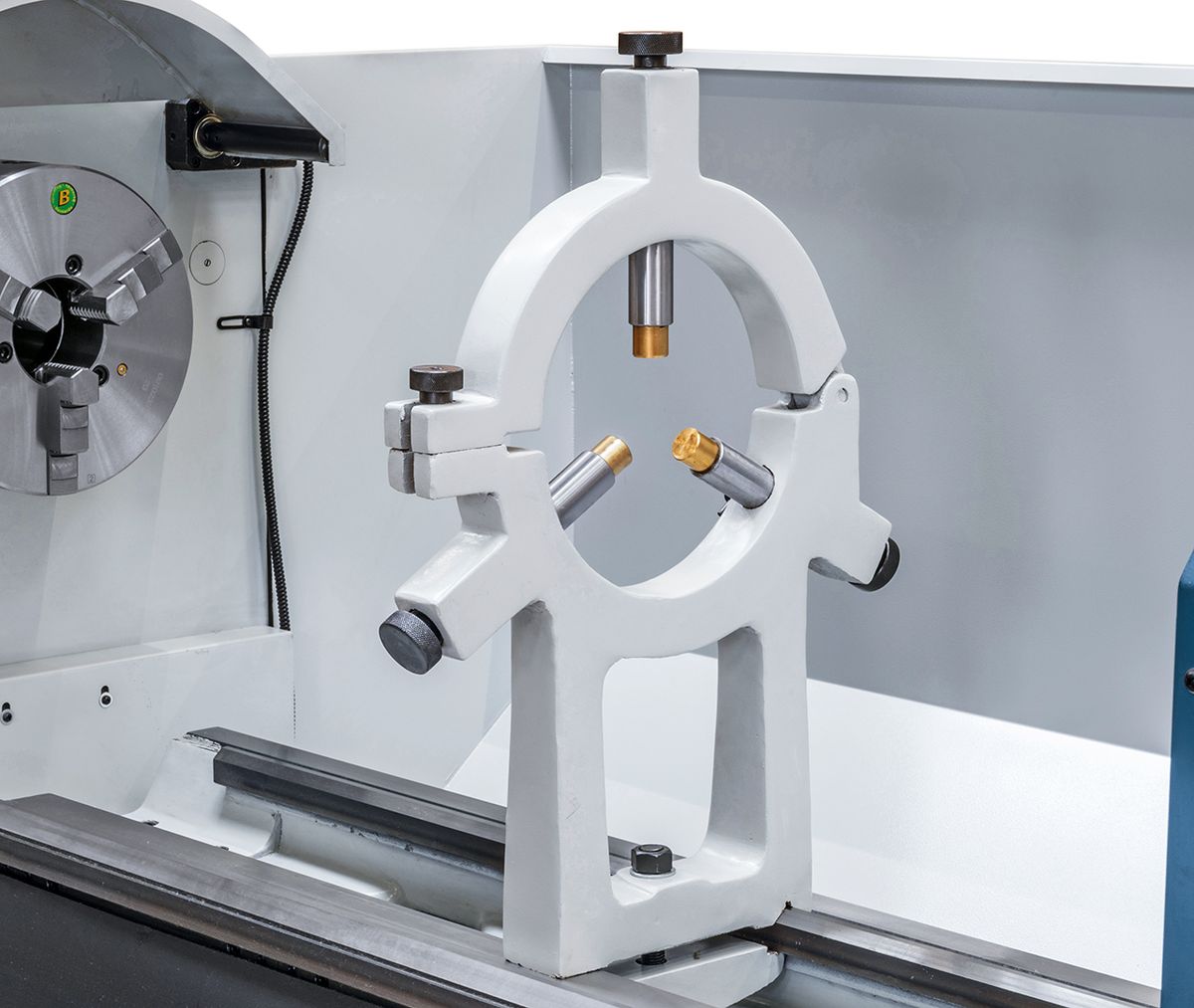

- Steady rest - Passage up to max. 260 mm
- Follow rest - Passage up to max. 110 mm
- 1 dead center / 1 live center
- Motor with magnetic brake according to CE
- Foot pedal with brake function acc. to CE
- Initial filling with Shell Tellus 46
- Coolant device

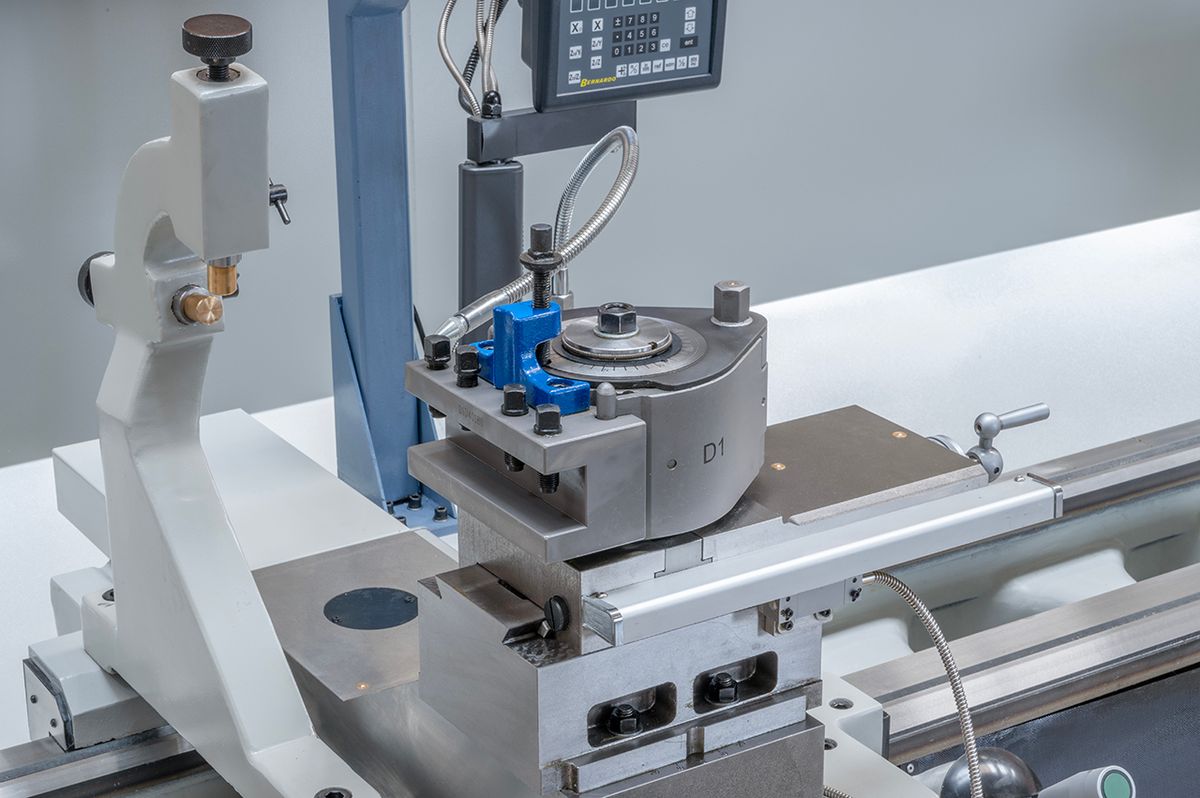

- 40 pos. tool post and holder set with 4 inserts
- Protective device at tool post holder
- Morse taper drill sleeve
- Splash guard
- Tools
Bernardo er et selskap fra Østerrike som har drevet salg av maskiner siden 1979. De har et stort lager på 7000m2 med mye maskiner og utstyr på lager for rask levering. De har stort utvalg av dreiebenker, boremaskiner, freser, platemaskiner, sager og mye mer.! De har også stort delelager for rask levering.
LTS Maskin er Bernardo sin hovedleverandør i Norge og vi kan levere alt av deres produktregister.
Last ned katalog nedenfor:
Metallmaskiner:
Generell katalog: EN
Platemaskiner
Generell katalog: EN
Tremaskiner
Generell katalog: EN
Bernardo leveres standard med 3x400v om ikke annet er spesifisert.
Riktig maskin til hvert bruk (se etter merkene nedenfor):
Hobby
Max. 150 h / year
Average usage:
2 h / day or 25% duty cycle
Semi-Professional
Max. 300 h / year
Average usage:
3 h / day or 50% duty cycle
Professional
Max. 600 h / year
Average usage:
3 h / day or 90% duty cycle
Industry
Max. 1500 h / year
Average usage:
8 h / day or 90% duty cycle
