Hobby 500 lathe 230v Bernardo 03-1070
The Hobby 500 turning lathe is equipped with a 6-step control gear to allow for quick speed change. The compact construction guarantees smooth running and precise work.
Technical specifications
|
Distance between centers |
500 mm |
|
Center height |
110 mm |
|
Swing over bed |
220 mm |
|
Spindle bore |
20 mm |
|
Taper at spindle bore |
MT 3 |
|
Speed range |
140 - 1710 rpm, 6 steps |
|
Longitudinal feed |
(4) 0,05 - 0,2 mm/rev. |
|
Metric thread |
(11) 0,4 - 3 mm |
|
Inch thread |
(11) 8 - 28 threads/1“ |
|
Travel of tailstock sleeve |
45 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Motor power output S1 100% |
0,55 kW / 230 V |
|
Motor power input S6 40% |
0,80 kW / 230 V |
|
Machine dimension (W x D x H)* |
1150 x 480 x 420 mm |
|
Weight approx. |
130 kg |
* without stand
Properties
- Control gear allows easy and quick speed change
- Machine bed inductive hardened and polished
- Guideways adjustable via gibs
- Optimal price-performance-ratio
- Very handy machine with leadscrew for thread cutting
- Spindle bedded with 2 adjustable precision ball bearings
- Tailstocck an be adjusted for taper turning
- Protective switch with undervoltage release
- Solid and small construction
Standard accessories
- 3-jaw chuck 100 mm
- Change gears
- Dead center

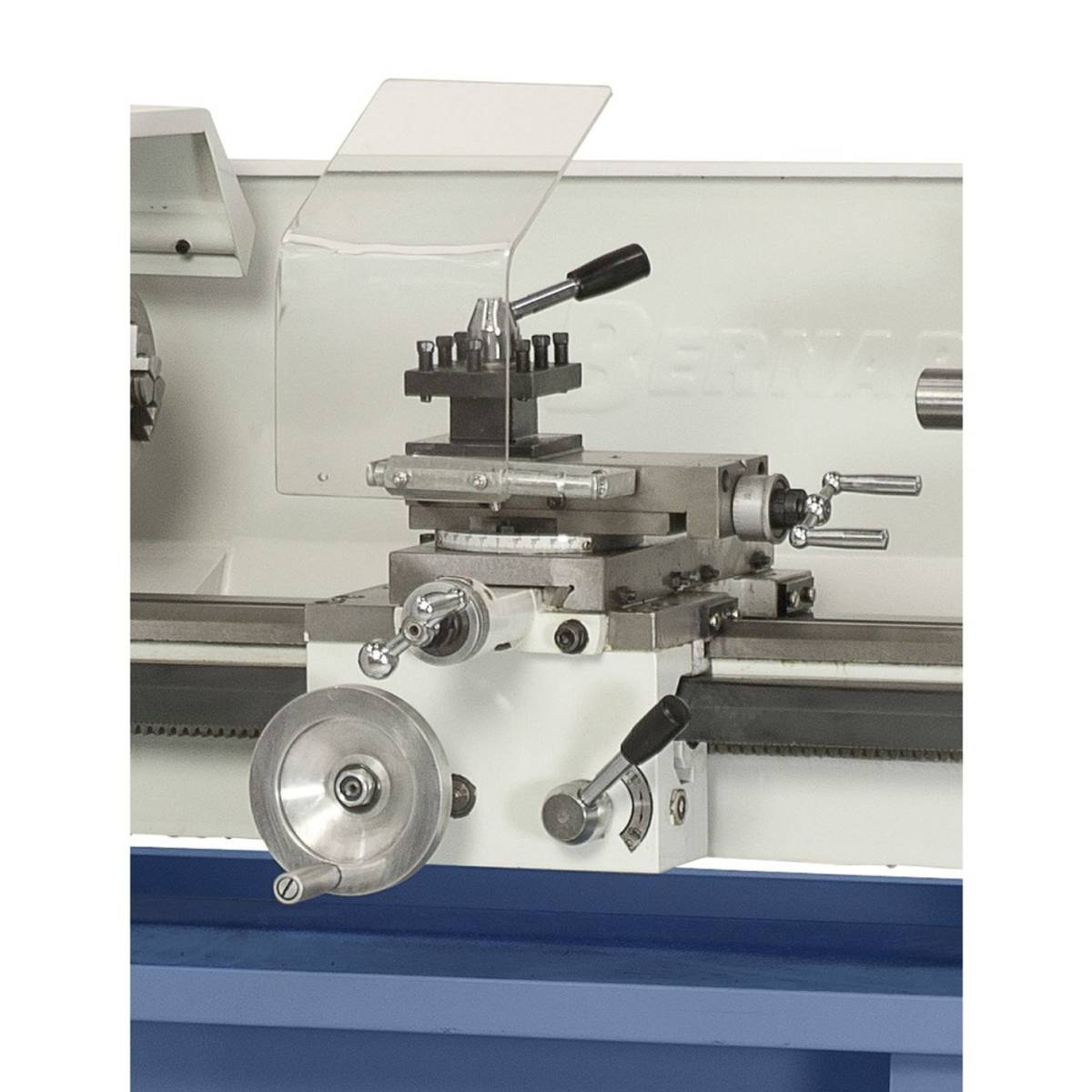

- 4-way tool post holder
- Cross slide with top support
- Chuck guard
https://www.bernardo.at/en/hobby-500-230-v.html
Bernardo er et selskap fra Østerrike som har drevet salg av maskiner siden 1979. De har et stort lager på 7000m2 med mye maskiner og utstyr på lager for rask levering. De har stort utvalg av dreiebenker, boremaskiner, freser, platemaskiner, sager og mye mer.! De har også stort delelager for rask levering.
LTS Maskin er Bernardo sin hovedleverandør i Norge og vi kan levere alt av deres produktregister.
Last ned katalog nedenfor:
Metallmaskiner:
Generell katalog: EN
Platemaskiner
Generell katalog: EN
Tremaskiner
Generell katalog: EN
Bernardo leveres standard med 3x400v om ikke annet er spesifisert.
Riktig maskin til hvert bruk (se etter merkene nedenfor):
Hobby
Max. 150 h / year
Average usage:
2 h / day or 25% duty cycle
Semi-Professional
Max. 300 h / year
Average usage:
3 h / day or 50% duty cycle
Professional
Max. 600 h / year
Average usage:
3 h / day or 90% duty cycle
Industry
Max. 1500 h / year
Average usage:
8 h / day or 90% duty cycle
