KBR 150 x 2000 Combined belt and pipe sanding Bernardo 05-13151
The KBR 150 x 2000 is a multifunctional grinding machine for grinding of pipes and end of profiles at the front as well as face grinding on the machine surface. The powerful motor and the robust construction make this model ideal for professional workshops and in small series production.
PROPERTIES
- Extended application area, grinding unit can be used both horizontally and vertically

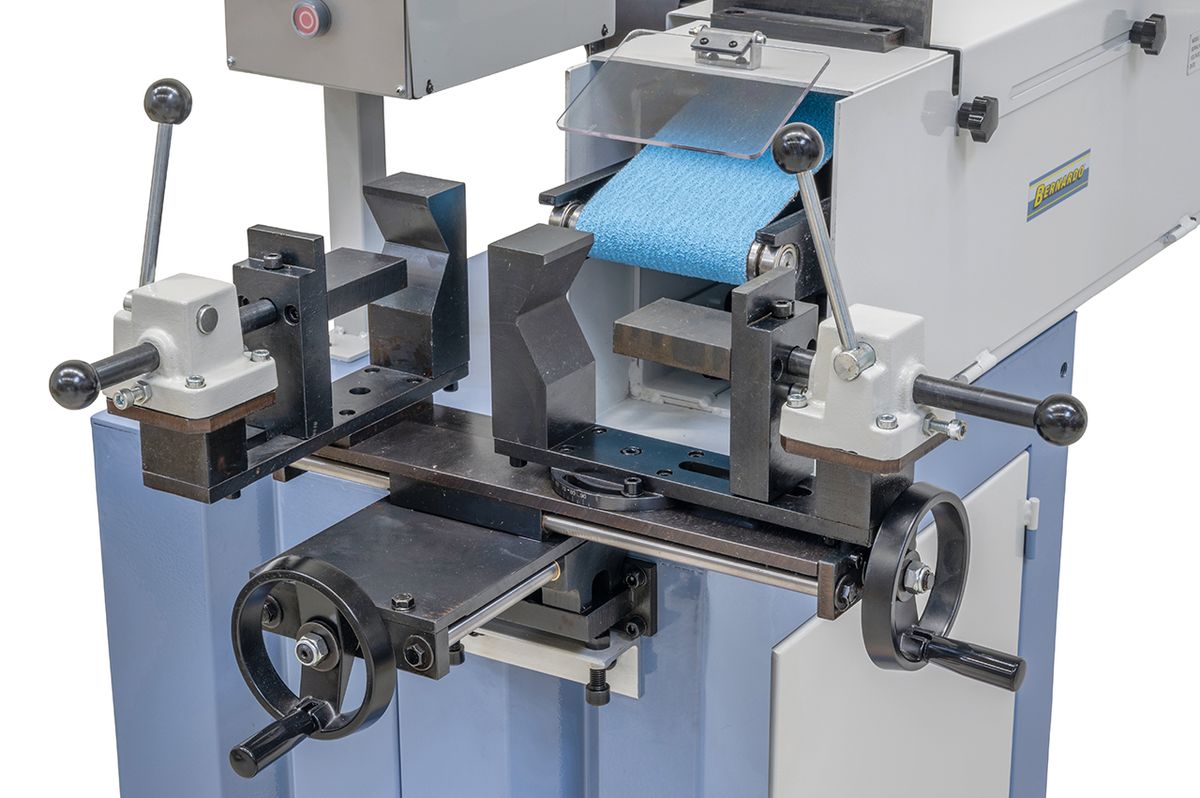

- Comes complete with round grinding device for grinding diameters from 35 – 145 mm
- Quick and easy grinding angle adjustment
- Graphite coating on face grinding area increases sliding capacity of sanding belt
- Large face grinding area with protective cover
- Low speed setting (15 m/sec) allows for optimal grinding of stainless steel and aluminium
- User-friendly belt change, straightforward and quick
- Fast and easy change of grinding rolls – no tools required
- Various grinding angles from 30° to 90° are easily achieved
- Short processing times compared to milling
TECHNICAL SPECIFICATIONS
|
Belt dimension |
150 x 2000 mm |
|
Belt speed |
15 / 30 m/sec. |
|
Grinding diameter |
35 - 145 mm |
|
Carriage adjustment |
30° - 90° |
|
Belt sanding table |
400 x 150 mm |
|
Dust extraction outlet |
100 mm |
|
Speed |
1420 / 2660 rpm |
|
Motor power |
4,0 / 5,5 kW (400 V) |
|
Machine dimension (W x D x H) |
985 x 1770 x 1350 mm |
|
Weight approx. |
280 kg |
STANDARD ACCESSORIES
- Sanding belt grit 36
- 1 pc. grinding wheel for 1 1/4“ pipe (42,4 mm pipe)
- 1 pc. grinding wheel for 4“ pipe (114,3 mm pipe)
- Foldable protective cover
- Sanding and supporting table
- Dust extraction outlet diam. 100 mm
- Graphite coating
- Motor protective switch
Bernardo er et selskap fra Østerrike som har drevet salg av maskiner siden 1979. De har et stort lager på 7000m2 med mye maskiner og utstyr på lager for rask levering. De har stort utvalg av dreiebenker, boremaskiner, freser, platemaskiner, sager og mye mer.! De har også stort delelager for rask levering.
LTS Maskin er Bernardo sin hovedleverandør i Norge og vi kan levere alt av deres produktregister.
Last ned katalog nedenfor:
Metallmaskiner:
Generell katalog: EN
Platemaskiner
Generell katalog: EN
Tremaskiner
Generell katalog: EN
Bernardo leveres standard med 3x400v om ikke annet er spesifisert.
