PFR 20 safety shield for small mill Tecno Più
Properties

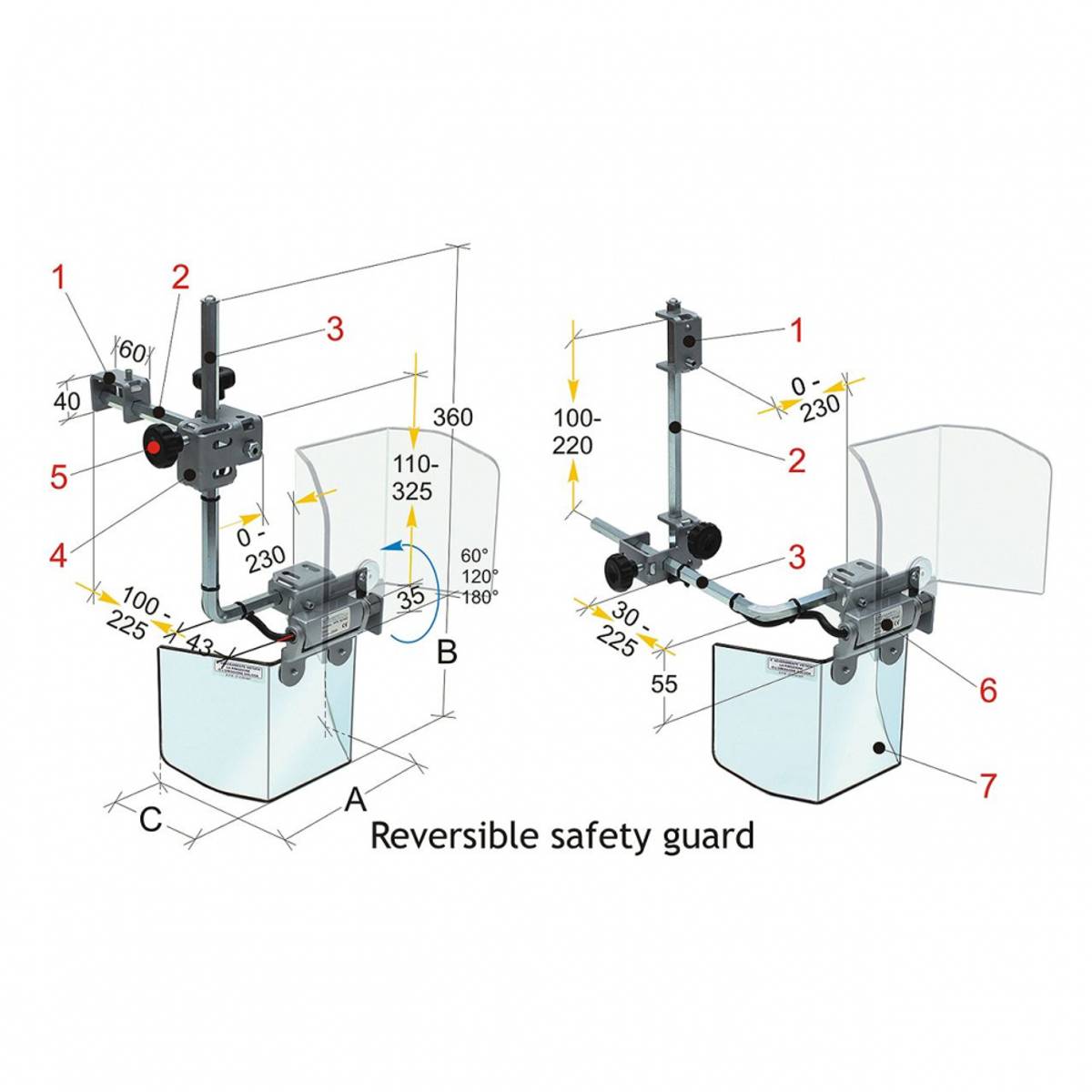

- Exclusive item supported by adjustable hexagonal arms. Equipped with a vertically opening shield and with a microswitch integrated in the rotation hinge
- Protects the operator against direct contact with rotating parts of the vertical spindle and against splashes of lubricants and coolants, as well as against shavings
- The shield is equipped with an innovative vertical “spring” opening system in the 60°- 120°- 180° positions, supported by widely-adjustable hexagonal arms, reversible between themselves to make available various fixing configurations
- The safety microswitch is integrated in the special hinge that is supporting the shield
| Model: |
A |
B |
C |
Weight |
| PFR 20/218 |
250 |
180 |
110 |
3,1 kg |
| PFR 20/320 |
300 |
200 |
125 |
3,2 kg |
