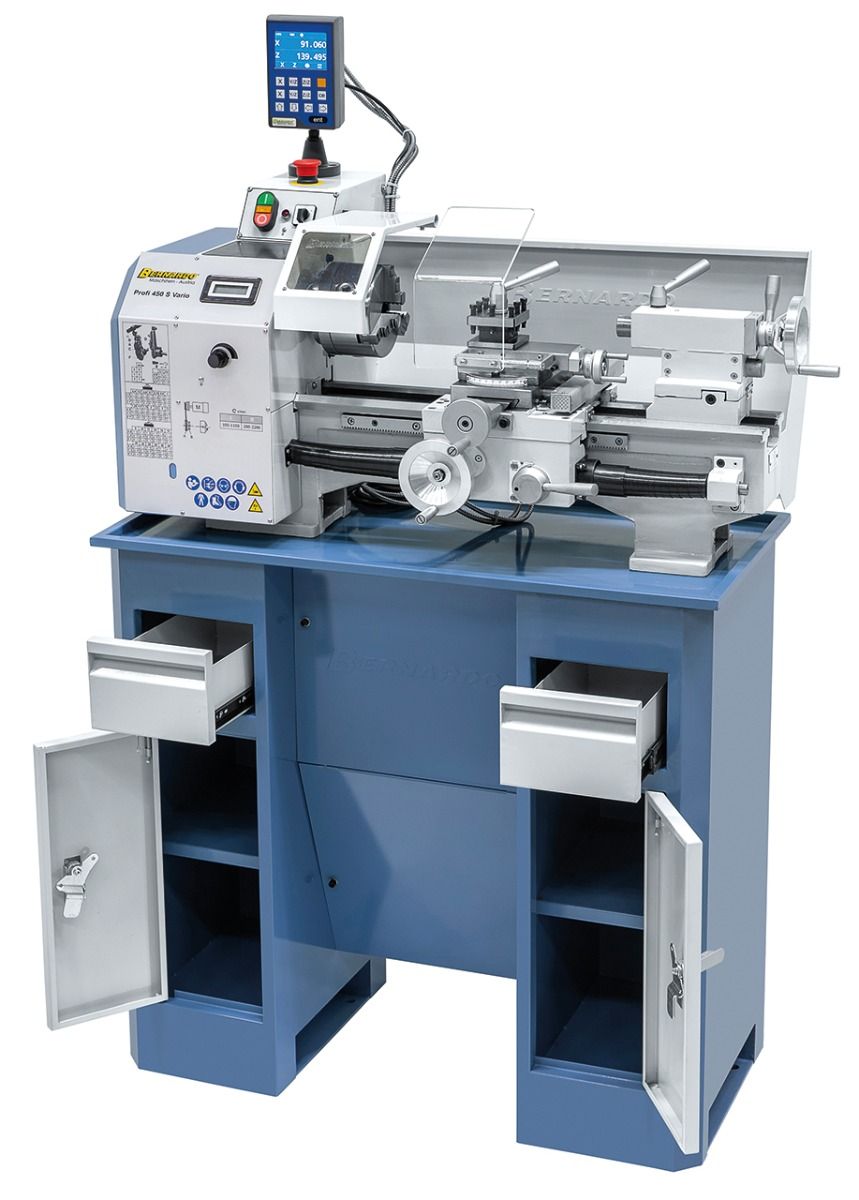

Profi 450 S Vario / 230 V lathe DT 40 Bernardo 03-1048
The compact precision lathe Profi 450 S Vario impresses with its modern design and the powerful drive motor for high torque. Due to the convincing price-performance ratio, this model is ideal for model builders and hobby do-it-yourselfers.
PROPERTIES
- Electronic, stepless speed setting allow ideal adjustment to each workpiece
- Complete with leadscrew for thread cutting and the automatic longitudinal feed
- Solid machine bed with inductively hardened and polished guides
- High-quality tapered roller bearings ensure high concentricity of spindle nose (≤ 0.015 mm)
- Tailstock can be adjusted for taper turning
- User-friendly arrangement of control elements
- Guides adjustable via gibs
- Powerful motor for high torque, speed range 100 – 2200 rpm
- Highly suitable for processing steel, non-ferrous materials or plastics
- Wide range of applications: precision mechanics, training and education, etc.
TECHNICAL SPECIFICATIONS
|
Distance between centers |
450 mm |
|
Center height |
115 mm |
|
Swing over bed |
230 mm |
|
Bed width |
135 mm |
|
Spindle bore |
20 mm |
|
Taper at spindle bore |
MK 3 |
|
Speed range, stepless |
100 – 1100 rpm |
|
|
200 – 2200 rpm |
|
Longitudinal feed |
(2) 0,1 / 0,2 mm/rev. |
|
Metric thread |
(14) 0,4 – 3,5 mm |
|
Inch thread |
(12) 8 – 44 threads/1“ |
|
Travel of tailstock sleeve |
60 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Motor power output S1 100% |
0,90 kW (230 V) |
|
Motor power input S6 40% |
1,35 kW (230 V) |
|
Machine dimension (W x D x H)* |
1000 x 580 x 500 mm |
|
Weight approx. |
112 kg |
* without stand
STANDARD ACCESSORIES
- 2-axis digital readout DT 40 with LCD-display
- 3-jaw chuck 125 mm
- Flange 125 mm
- Cross slide with top support
- Digital speed display
- Dead centers
- Change gears
- 4-way tool post holder
- Chuck guard
- Splash guard
- Leadscrew cover
- Tools
