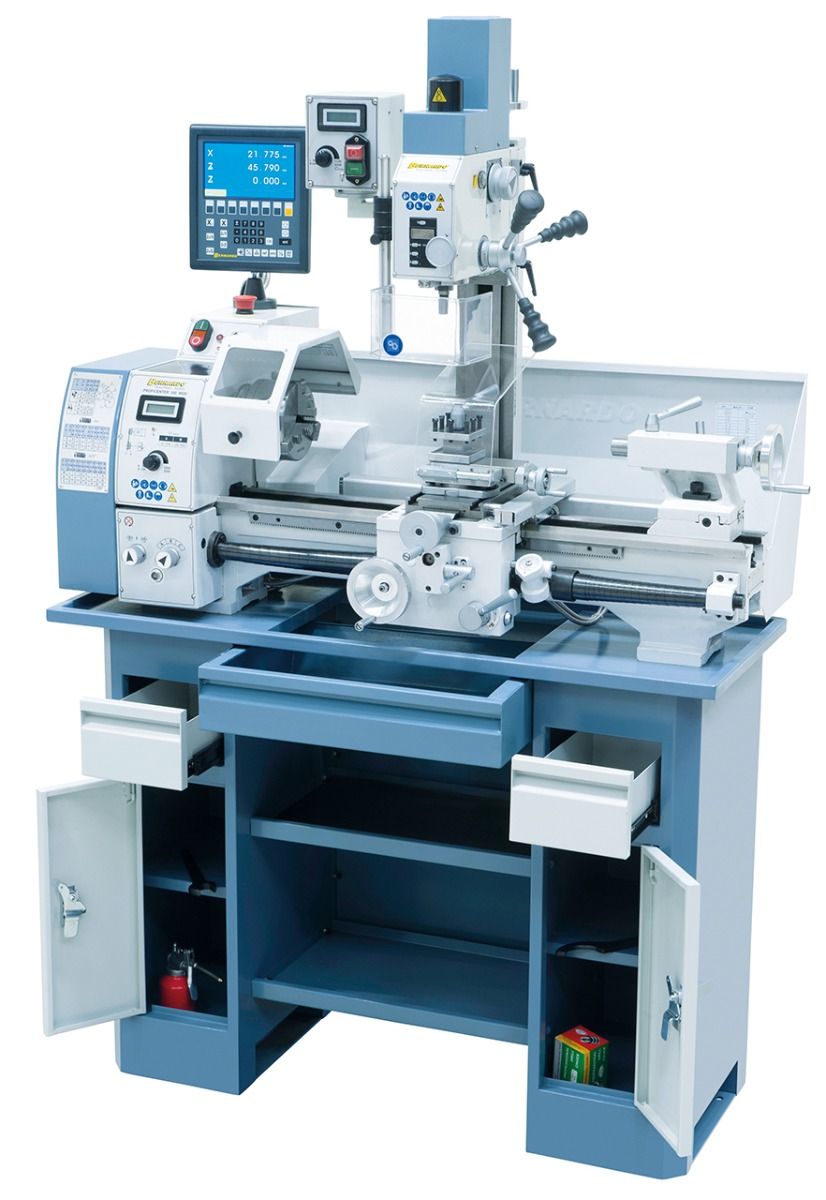

Proficenter 550 WQV / 230 V incl. 2-axis digital readout ES-12 V Bernardo 03-1242
The Proficenter 550 WQV meets all requirements of precision mechanics, training workshops and education. The machining centre allows drilling, milling and turning on minimum space, comes with a digital display of drill depth and speed for high comfort and features a large spindle bore.
PROPERTIES
- Hardened spindle, standard 26 mm bore
- Electronic, stepless speed setting allows ideal adjustment to workpiece
- Serially equipped with longitudinal and cross feed
- Inductively hardened and polished machine bed provides large surface
- Constructed according to Bernardo-Standards
- Precise spindle bedding with 2 adjustable precision taper roller bearings
- User-friendly arrangement of control elements on gear head
- Protective switch according to IP54 standards with undervoltage release
- Swivelling mill head extends application area (-90° to +90°)
- Mill head with digital display for spindle stroke and speed
TECHNICAL SPECIFICATIONS
|
Turning lathe |
|
|
Distance between centers |
550 mm |
|
Center height |
125 mm |
|
Swing over bed |
250 mm |
|
Spindle bore |
26 mm |
|
Taper at spindle bore |
MT 4 |
|
Speed range, stepless |
50 - 2000 / 100 - 2000 rpm |
|
Longitudinal feed |
(6) 0,07 - 0,40 mm/rev. |
|
Cross feed |
(4) 0,03 - 0,075 mm/rev. |
|
Metric thread |
(18) 0,2 - 3,5 mm |
|
Inch thread |
(21) 8 - 56 threads/1“ |
|
Travel of tailstock sleeve |
70 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
T-slot size for cross slide |
10 mm |
|
Motor power output S1 100% |
0,75 kW / 230 V |
|
Motor power input S6 40% |
1,0 kW / 230 V |
|
Milling attachment |
|
|
Drilling capacity in steel |
16 mm |
|
Face mill capacity max. |
50 mm |
|
End mill capacity max. |
16 mm |
|
Distance spindle to column |
150 mm |
|
Spindle speed, stepless |
50 - 2250 rpm |
|
Spindle taper |
MT 2 |
|
Mill head tiltable |
-90° to +90° |
|
Height adjustment of mill head |
195 mm |
|
Motor power output S1 100% |
0,50 kW / 230 V |
|
Motor power input S6 40% |
0,75 kW / 230 V |
|
Machine dimension (W x D x H)* |
1210 x 610 x 860 mm |
|
Weight approx. |
165 kg |
* without stand
STANDARD ACCESSORIES
- 2-axis digital readout ES-12 V with LCD-display
- 3-jaw chuck DK11-125 mm
- Flange 125 mm
- Drill chuck 1 – 13 mm / B 16
- Drill chuck arbor MT 2 / B 16
- Thread dial
- Dead centers
- Change gears
- 4-way tool post holder
- Cross slide with top support
- Digital spindle stroke display
- Digital speed display
- Drawbar M 10
- Chuck guard
- Leadscrew cover
- Tools
