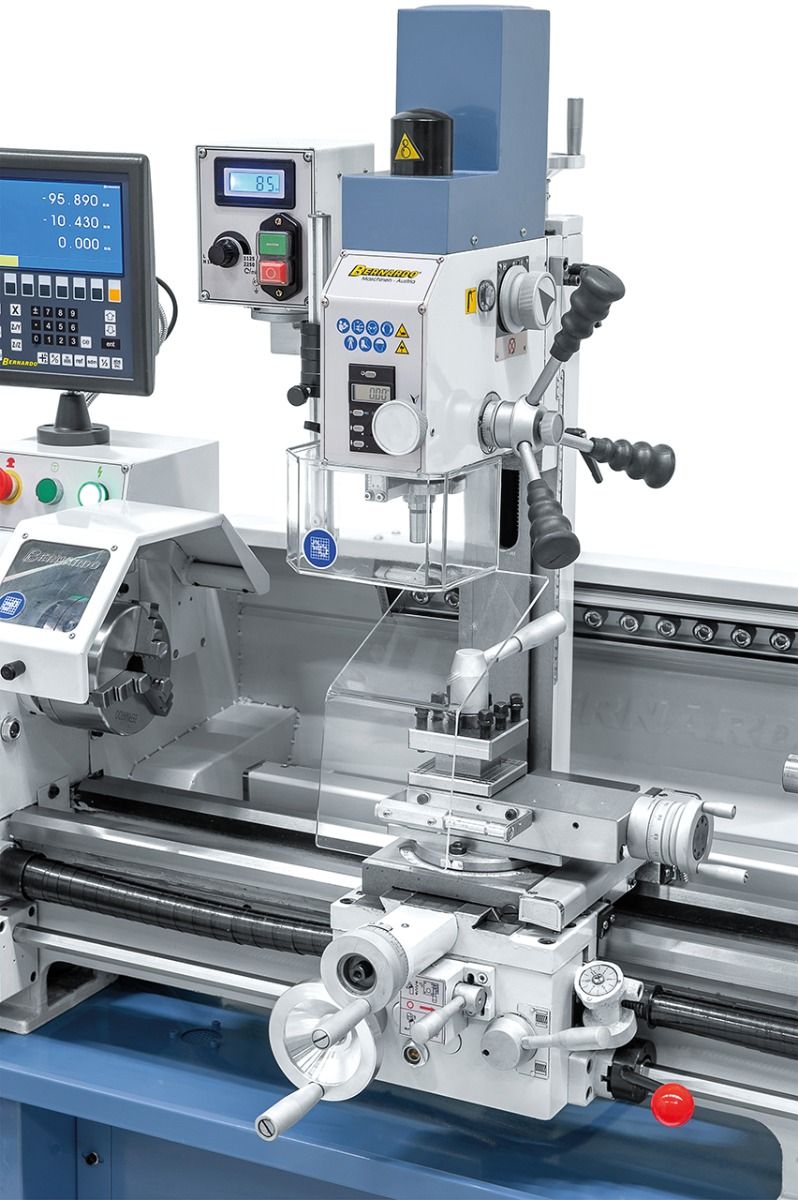

Proficenter 650 G / 230 V incl. 2-axis digital readout ES-12 V Bernardo 03-1227
The machining centre Proficenter 650 G is serially equipped with a leadscrew for thread cutting and the automatic longitudinal and cross feed. The 12-step control gear allow a quick adjustment of the speed – not belt change necessary. The machine is serially equipped with a Bernardo digital readout.
PROPERTIES
- Control gear allows easy and quick speed change
- High-quality tapered rollerbearings ensure high concentricity of spindle nose (≤ 0,015 mm)
- Powerful motor for high torque, speed range 70 – 2000 rpm
- Wide range of applications: precision mechanics, training and education, etc.
- Logically arranged feed setting allows easy, smooth adjustment
- Solid machine bed with inductive hardened and polished guideways
- Ideal for processing steel, non-ferrous metals and plastics
- Comes complete with leadscrew for thread cutting and automatic longitudinal and cross feed
- Mill head tilts to both sides allowing angular boring, milling of bevels etc.
- Right and left milling spindle rotation comes standard
- Handwheel allows fine spindle feed when milling
TECHNICAL SPECIFICATIONS
|
Turning lathe |
|
|
Distance between centers |
650 mm |
|
Center height |
140 mm |
|
Swing over bed |
280 mm |
|
Bed width |
160 mm |
|
Spindle bore |
26 mm |
|
Taper at spindle bore |
MT 4 |
|
Speed range |
(12) 70 - 2000 rpm |
|
Longitudinal feed |
(15) 0,036 - 0,364 mm/rev. |
|
Cross feed |
(15) 0,019 - 0,188 mm/rev. |
|
Metric thread |
(27) 0,25 - 5 mm |
|
Inch thread |
(20) 6 - 96 threads/1“ |
|
Travel of tailstock sleeve |
105 mm |
|
Taper of tailstock sleeve |
MT 3 |
|
Motor power output S1 100% |
0,75 kW / 230 V |
|
Motor power input S6 40% |
1,0 kW / 230 V |
|
Milling attachment |
|
|
Drilling capacity in steel |
16 mm |
|
Face mill capacity max. |
50 mm |
|
End mill capacity max. |
16 mm |
|
Distance spindle to column |
150 mm |
|
Spindle speed, stepless |
50 - 2250 rpm |
|
Spindle taper |
MT 2 |
|
Mill head tiltable |
-90° to +90° |
|
Height adjustment of mill head |
195 mm |
|
Motor power output S1 100% |
0,50 kW / 230 V |
|
Motor power input S6 40% |
0,75 kW / 230 V |
|
|
|
|
Machine dimension (W x D x H)* |
1400 x 720 x 970 mm |
|
Weight approx. |
256 kg |
* without stand
STANDARD ACCESSORIES
- 2-axis digital readout ES-12 V with LCD-display
- 3-jaw chuck 125 mm
- Flange 125 mm
- Drill chuck 1 – 13 mm / B 16
- Drill chuck arbor MT 2 / B 16
- Dead centers
- Thread dial
- LED machine light
- Change gears
- 4-way tool post holder
- Cross slide with top support
- Digital spindle stroke display
- Digital speed display
- Drawbar M 10
- Chuck guard
- Leadscrew cover
- Splash guard
- Tools
