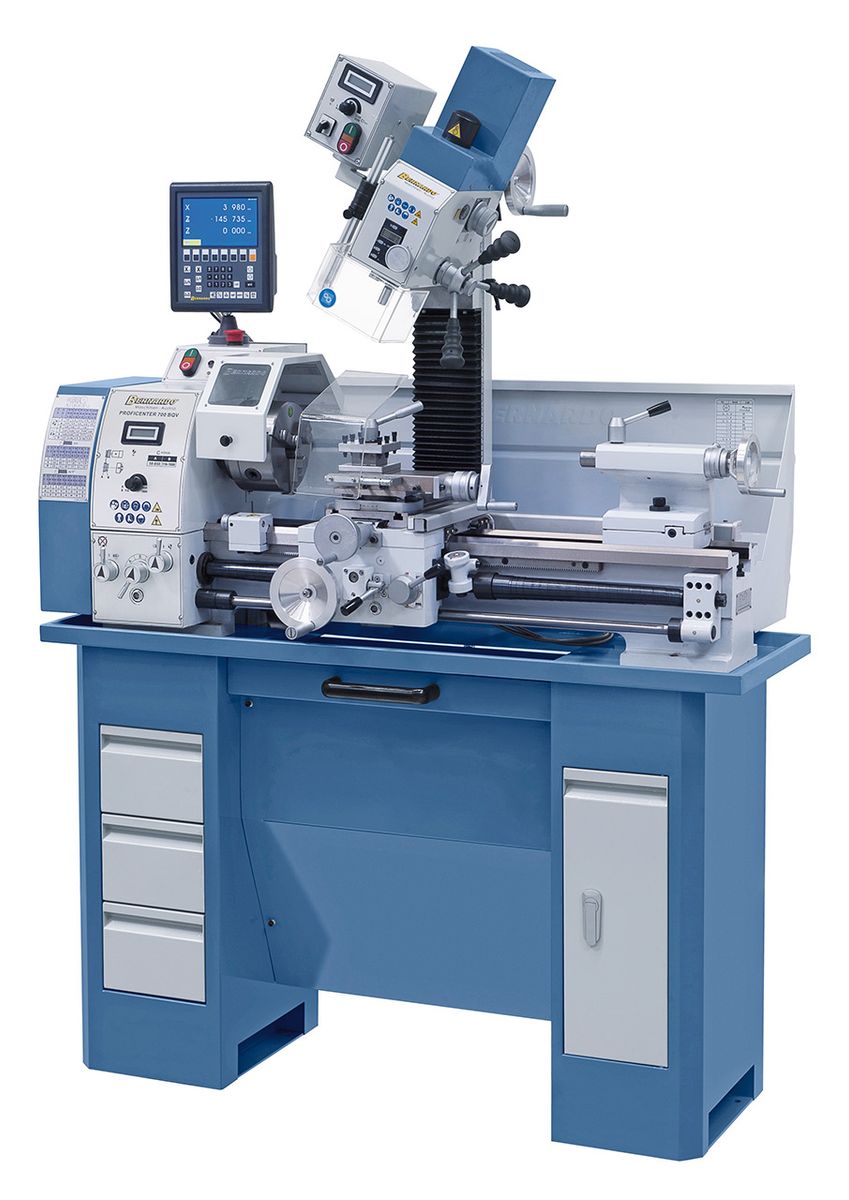

Proficenter 700 BQV / 230 V inkl. 2-axis-Digital readout Bernardo 03-1250B
Our top model Proficenter 700 BQV meets the highest requirements of precision mechanics, workshops etc. Drilling, milling and turning is achievable on smallest space. The machines combine many features, such as a big spindle bore and a digital display for drilling depth and speed. To reduce the non-productive time, this model is also available with a 2-axis digital readout.
PROPERTIES
- Electronic, stepless speed setting allows optimal adjustment to workpiece
- Comes complete with feed rod for automatic longitudinal and cross feed
- Inductive hardened, polished machine bed features a large surface
- Standard 38 mm spindle bore allows machining of shafts with a large diameter
- Manufactured according to strict Bernardo quality regulations
- Tiltable mill head extends application area enormously
- Milling unit features digital display for spindle stroke and speed
- Top slide adjustable along the x-axis
- Right and left milling spindle rotation comes standard
- Handwheel allows fine spindle feed when milling
TECHNICAL SPECIFICATIONS
|
Turning lathe |
|
|
Distance between centers |
700 mm |
|
Center height |
150 mm |
|
Swing over bed |
280 mm |
|
Spindle bore |
38 mm |
|
Taper at spindle bore |
MT 5 |
|
Speed range, stepless |
50 - 1000 / 100 - 1800 rpm |
|
Longitudinal feed |
(14) 0,07 - 0,65 mm/rev. |
|
Cross feed |
(11) 0,03 - 0,12 mm/rev. |
|
Metric thread |
(18) 0,2 - 3,5 mm |
|
Inch thread |
(21) 8 - 56 threads/1“ |
|
Travel of tailstock sleeve |
85 mm |
|
Taper of tailstock sleeve |
MT 3 |
|
T-slot size for cross slide |
12 mm |
|
Motor power output S1 100% |
1,1 kW / 230 V |
|
Motor power input S6 40% |
1,5 kW / 230 V |
|
Milling attachment |
|
|
Drilling capacity max. |
20 mm |
|
Face mill capacity max. |
63 mm |
|
End mill capacity max. |
20 mm |
|
Distance spindle to column |
170 mm |
|
Spindle speed, stepless |
50 - 2250 rpm |
|
Spindle taper |
MT 2 |
|
Mill head tiltable |
-90° to +90° |
|
Mill head height adjustable |
260 mm |
|
Motor power output S1 100% |
0,60 kW / 230 V |
|
Motor power input S6 40% |
0,90 kW / 230 V |
|
Machine dimension (W x D x H)* |
1380 x 640 x 1020 mm |
|
Weight approx. |
298 kg |
|
|
|
* without stand
STANDARD ACCESSORIES
- 2-axis digital readout ES-12 V with LCD-display
- 3-jaw chuck DK11-160 mm
- Flange 160 mm
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 2 / B 16
- Dead center
- Change gears
- 4-way tool post holder
- Safety clutch
- Micrometer longitudinal fence
- Cross slide with top support
- Digital spindle stroke indication
- Digital speed indication
- Thread dial
- Drawbar M 10
- Chuck guard
- Leadscrew cover
- Splash guard
- Tools
