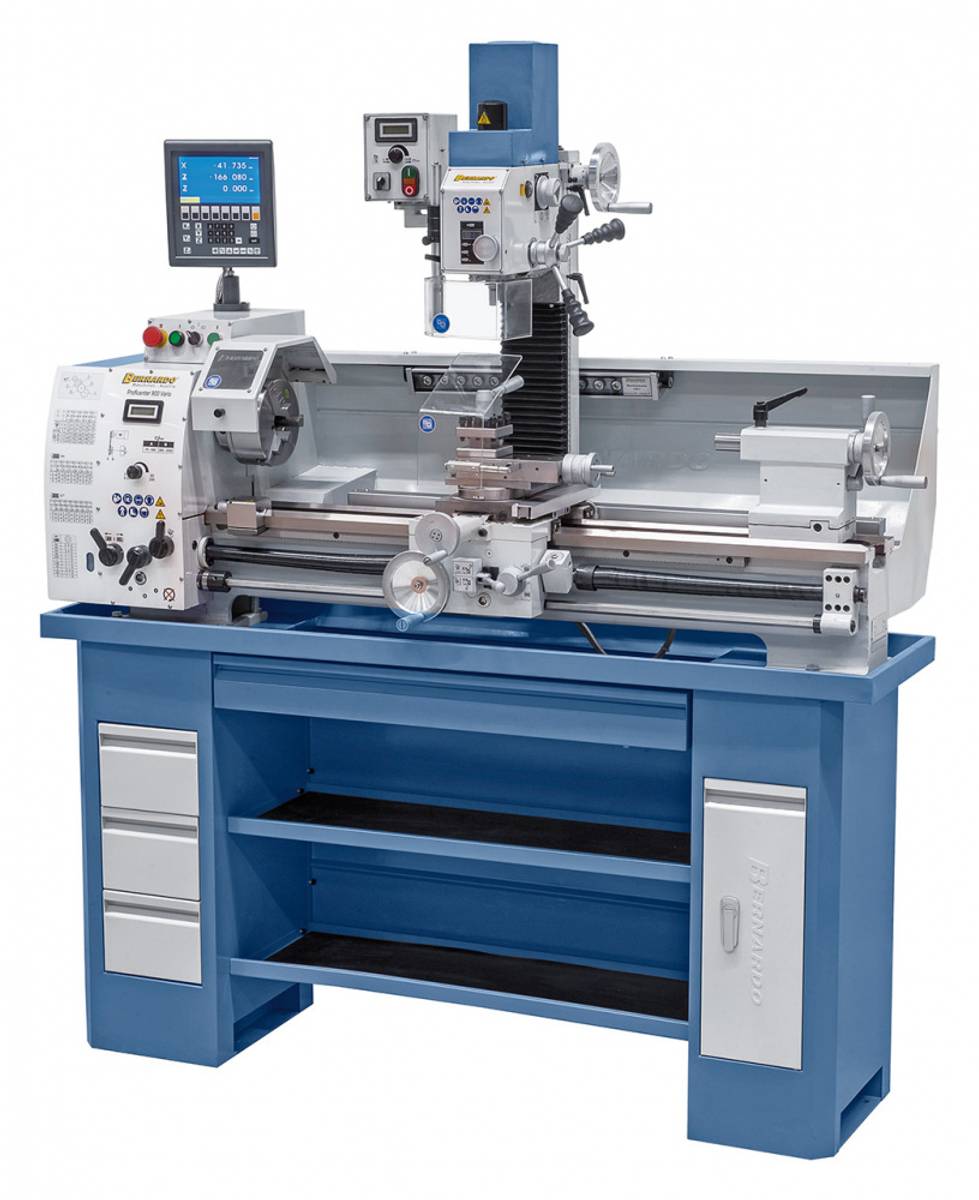

The machining centre Proficenter 900 Vario feature a large range of standard accessories (for instance milling attachment, DC-motor with frequency inverter, main spindle bearing in P5-quality, micrometric longitudinal fence, safety clutch, LED machine light,....) making this model ideal for users with high expectations. For reducing the non-productive time, the model is also available with a 2-axis digital readout.
Properties
- Three -phase motor with frequency inverter for higher performance and high torque
- Complete with 38 mm spindle bore to allow processing of large shaft diameters
- Wide range of applications: precision mechanics, training and education, etc.
- Stepless speed adjustment as part of standard accessories, set speed can be read on digital display
- Feed settings are logically arranged, easy to control with top accuracy
- Suitable for processing of steel, non-ferrous metals and plastics
- Prism bed with large support surface, inductively hardened and polished
- Precise spindle bearing with two adjustable precision taper roller bearings
- Mill head with digital display for spindle stroke and speed
- Mill head tilts to both sides allowing angular boring, milling of bevels etc
Technical specifications
|
Turning lathe |
|
|
Distance between centers |
900 mm |
|
Center height |
160 mm |
|
Swing over bed |
320 mm |
|
Spindle bore |
38 mm |
|
Taper at spindle bore |
DIN 55029, D1-4 |
|
Speed range, stepless |
75 – 500 / 300 – 2000 rpm |
|
Longitudinal feed |
(15) 0,07 – 1,0 mm/rev. |
|
Cross feed |
(15) 0,017 – 0,25 mm/rev. |
|
Metric thread |
(18) 0,2 – 3,5 mm |
|
Inch thread |
(21) 8 – 56 Gg/1“ |
|
Travel of tailstock sleeve |
100 mm |
|
Taper of tailstock sleeve |
MT 3 |
|
T-slot size at cross slide |
12 mm |
|
Motor power output S1 100% |
1,5 KW / 230 V |
|
Motor power input S6 40% |
2,2 kW / 230 V |
|
Milling attachment |
|
|
Drilling capacity max. |
20 mm |
|
Face mill capacity max. |
63 mm |
|
End mill capacity max. |
20 mm |
|
Distance spindle to column |
170 mm |
|
Spindle speed, stepless |
50 - 2250 rpm |
|
Spindle taper |
MT 2 |
|
Mill head tiltable |
-90° to +90° |
|
Height adjustment of mill head |
260 mm |
|
Motor power output S1 100% |
0,60 kW / 230 V |
|
Motor power input S6 40% |
0,90 kW / 230 V |
|
|
|
|
Machine dimension (W x D x H)* |
1650 x 650 x 1120 mm |
|
Weight approx. |
303 kg |
|
* without stand |
|
Standard accessories
- 2-axis digital readout ES-12 V with LCD-display
- 3-jaw chuck DK11-160 mm / D4
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 2 / B 16
- Dead centers
- Change gears
- 4-way tool post holder
- Safety clutch
- Micrometer longitudinal fence
- Cross slide with top support
- Frequency inverter
- Drawbar M 10
- Digital spindle stroke indication
- Digital speed indication
- Thread dial
- LED machine light
- Chuck guard
- Leadscrew cover
- Splash guard
- Tools
* SOKKEL / STAND ER IKKE INKLUDERT I PRISEN
Bernardo er et selskap fra Østerrike som har drevet salg av maskiner siden 1979. De har et stort lager på 7000m2 med mye maskiner og utstyr på lager for rask levering. De har stort utvalg av dreiebenker, boremaskiner, freser, platemaskiner, sager og mye mer.! De har også stort delelager for rask levering.
LTS Maskin er Bernardo sin hovedleverandør i Norge og vi kan levere alt av deres produktregister.
Last ned katalog nedenfor:
Metallmaskiner:
Generell katalog: EN
Platemaskiner
Generell katalog: EN
Tremaskiner
Generell katalog: EN
Bernardo leveres standard med 3x400v om ikke annet er spesifisert.
Riktig maskin til hvert bruk (se etter merkene nedenfor):
Hobby
Max. 150 h / year
Average usage:
2 h / day or 25% duty cycle
Semi-Professional
Max. 300 h / year
Average usage:
3 h / day or 50% duty cycle
Professional
Max. 600 h / year
Average usage:
3 h / day or 90% duty cycle
Industry
Max. 1500 h / year
Average usage:
8 h / day or 90% duty cycle
