Solid 460 x 1000 Pro Vario lathe Bernardo 03-1309XL2
The Solid 460 Pro Vario is universal lathe designed for easy and economical production of single parts or small series. A wide range of equipment is included, making these machines highly versatile.
Properties
- State-of-the-art main spindle bearing with high-quality angular ball bearings
- Serially with Delta-frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads
- Stepless speed adjustment, set speed can be read on digital display
- Hardened, polished gear wheels and shafts, even in feed unit
- Complete with longitudinal and cross rapid feed to reduce downtime
- Centrally positioned, practical feed and thread cutting controls (with leadscrew and feed rod)
- Large gear wheels, hardened and polished
- Straightforward speed and feed adjustments allow for easy and accurate settings
- Machine bed, cast in one piece, eliminates torsion and vibrations, resulting in best possible accuracy
Standard accessories
- 3-axis digital readout with ES-12 V display
- 3-jaw chuck PS3-250 mm / D8 • Steady rest - Passage up to max. 150 mm
- Follow rest - Passage up to max. 110 mm • Initial filling with Shell Tellus 46
- Face plate 350 mm
- 40 pos. tool post and holder set with 4 inserts

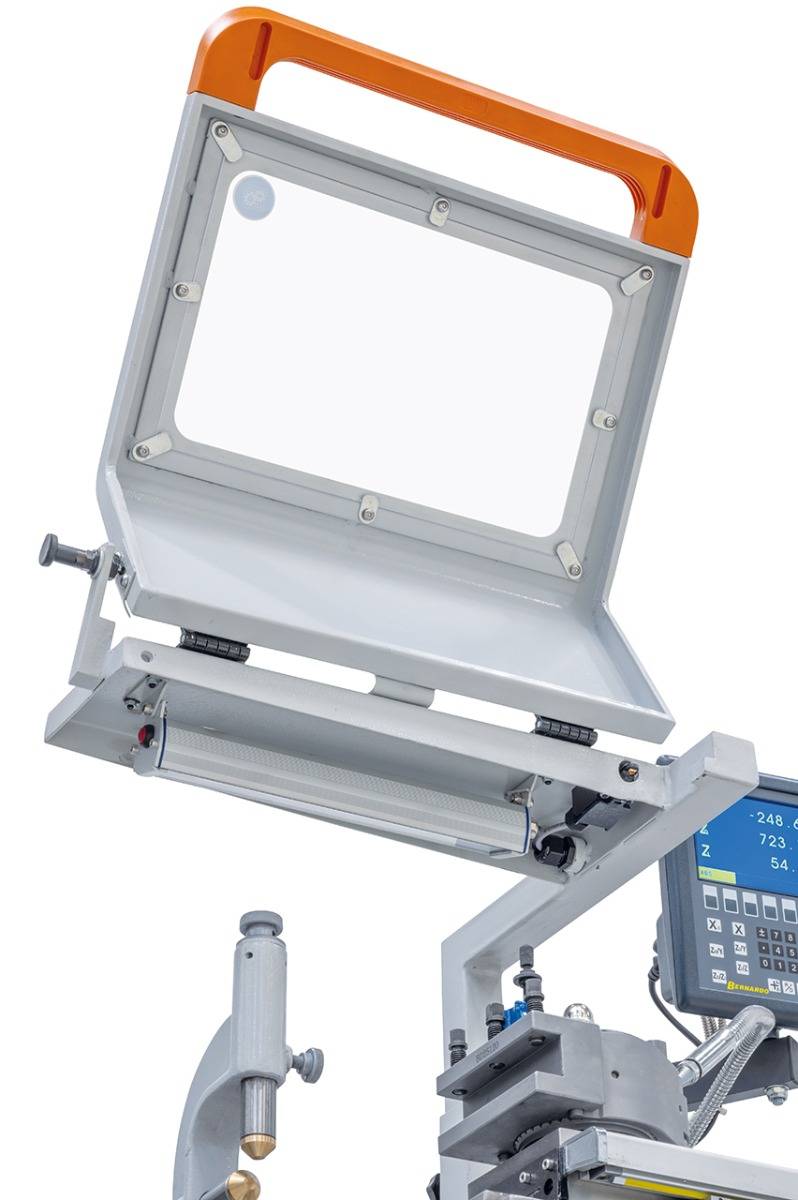

- Protective device at tool post holder
- Foot pedal with brake function according to CE
- Coolant device
- Frequency inverter
- Safety clutch
- Rapid feed longitudinal and cross
- Change gears • Morse taper drill sleeve
- 2 dead centers
- Thread dial
- LED machine light
- Splash guard • Tools
Technical specifications
|
Distance between centers |
1000 mm |
|
Center height |
230 mm |
|
Swing over bed |
460 mm |
|
Swing over gap |
690 mm |
|
Swing over cross slide |
274 mm |
|
Bed width |
300 mm |
|
Spindle bore |
80 mm |
|
Spindle nose fixture |
DIN 55029, D1-8 |
|
Speed range (2 seps) |
25 - 250 / 250 - 1700 rpm |
|
Longitudinal feed |
(42) 0,055 - 3,065 mm/rev. |
|
Cross feed |
(42) 0,025 - 1,386 mm/rev. |
|
Metric thread |
(41) 0,1 - 14 mm |
|
Inch thread |
(60) 2 - 112 threads/1“ |
|
Diameter of tailstock sleeve |
60 mm |
|
Travel of tailstock sleeve |
130 mm |
|
Taper of tailstock sleeve |
MT 4 |
|
Motor power |
5,5 kW (7,5 HP) |
|
Machine dimension (W x D x H) |
2300 x 1080 x 1600 mm |
|
Weight approx. |
1730 kg |
Bernardo er et selskap fra Østerrike som har drevet salg av maskiner siden 1979. De har et stort lager på 7000m2 med mye maskiner og utstyr på lager for rask levering. De har stort utvalg av dreiebenker, boremaskiner, freser, platemaskiner, sager og mye mer.! De har også stort delelager for rask levering.
LTS Maskin er Bernardo sin hovedleverandør i Norge og vi kan levere alt av deres produktregister.
Last ned katalog nedenfor:
Metallmaskiner:
Generell katalog: EN
Platemaskiner
Generell katalog: EN
Tremaskiner
Generell katalog: EN
Bernardo leveres standard med 3x400v om ikke annet er spesifisert.
Riktig maskin til hvert bruk (se etter merkene nedenfor):
Hobby
Max. 150 h / year
Average usage:
2 h / day or 25% duty cycle
Semi-Professional
Max. 300 h / year
Average usage:
3 h / day or 50% duty cycle
Professional
Max. 600 h / year
Average usage:
3 h / day or 90% duty cycle
Industry
Max. 1500 h / year
Average usage:
8 h / day or 90% duty cycle
