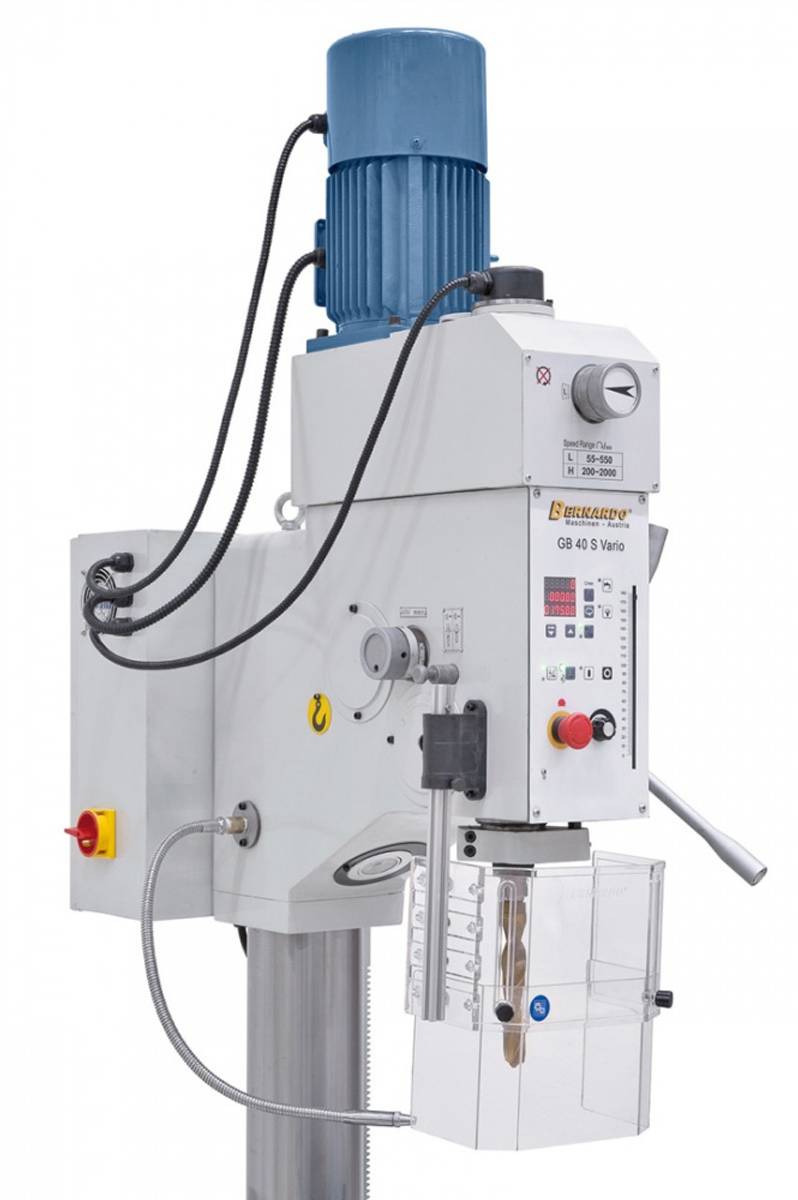

GB 40 S Vario drilling machine Bernardo 01-1290XL
The GB 40 S Vario is a heavy gear head drilling machine featuring stepless speed adjustment, automatic spindle feed and a digital display. This model is mainly used in repair shops and within engineering environments.
Properties
- Stepless speed setting allows optimal adjustment of cutting speed
- High-quality base with T-slots allows clamping of overly long workpieces
- Includes 2 automatic spindle feeds, adjustable electromagnetically
- Worktable swivels horizontally around column, 45° tiltable left and right
- Hardened, polished gear wheels allow for smooth operation
- Guaranteed concentricity of ≤ 0.02 mm, measured at spindle
- Membrane keyboard ensures user-friendly operation
- Automatic tool release device and thread cutting device come standard
Standard accessories
- Keyless drill chuck 1 - 16 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Morse taper drill sleeve MT 4 / 3, MT 3 / 2
- Frequency inverter Delta VFD
- Automatic tool release device
- Coolant device
- Electromagnetic spindle feed
- Thread cutting device
- LED-machine light
- Digital speed indication
- Digital drill depth indication
- Height adjustable protective cover
Technical specifications
|
Drilling capacity max. |
40 mm |
|
Thread cutting max. |
M24 |
|
Drill chuck |
1 – 16 mm / B 16 |
|
Morse taper |
MT 4 |
|
Spindle speeds |
55 – 550 / 200 – 2000 rpm |
|
Feed range |
0,1 / 0,2 mm/rev. |
|
Distance spindle to column |
340 mm |
|
Distance spindle to table max. |
675 mm |
|
Distance spindle to base |
1195 mm |
|
Spindle stroke |
190 mm |
|
Column diameter |
150 mm |
|
Table size / T-slot size |
555 x 555 mm / 18 mm |
|
Working surface of base |
535 x 505 mm |
|
Motor power output S1 100% |
2,2 kW / 400 V |
|
Motor power input S6 40% |
3,0 kW / 400 V |
|
Machine dimension (W x D x H) |
620 x 1000 x 2300 mm |
|
Weight approx. |
475 kg |
https://www.bernardo.at/en/gb-40-vario.html
Bernardo er et selskap fra Østerrike som har drevet salg av maskiner siden 1979. De har et stort lager på 7000m2 med mye maskiner og utstyr på lager for rask levering. De har stort utvalg av dreiebenker, boremaskiner, freser, platemaskiner, sager og mye mer.! De har også stort delelager for rask levering.
LTS Maskin er Bernardo sin hovedleverandør i Norge og vi kan levere alt av deres produktregister.
Last ned katalog nedenfor:
Metallmaskiner:
Generell katalog: EN
Platemaskiner
Generell katalog: EN
Tremaskiner
Generell katalog: EN
Bernardo leveres standard med 3x400v om ikke annet er spesifisert.
Riktig maskin til hvert bruk (se etter merkene nedenfor):
Hobby
Max. 150 h / year
Average usage:
2 h / day or 25% duty cycle
Semi-Professional
Max. 300 h / year
Average usage:
3 h / day or 50% duty cycle
Professional
Max. 600 h / year
Average usage:
3 h / day or 90% duty cycle
Industry
Max. 1500 h / year
Average usage:
8 h / day or 90% duty cycle
