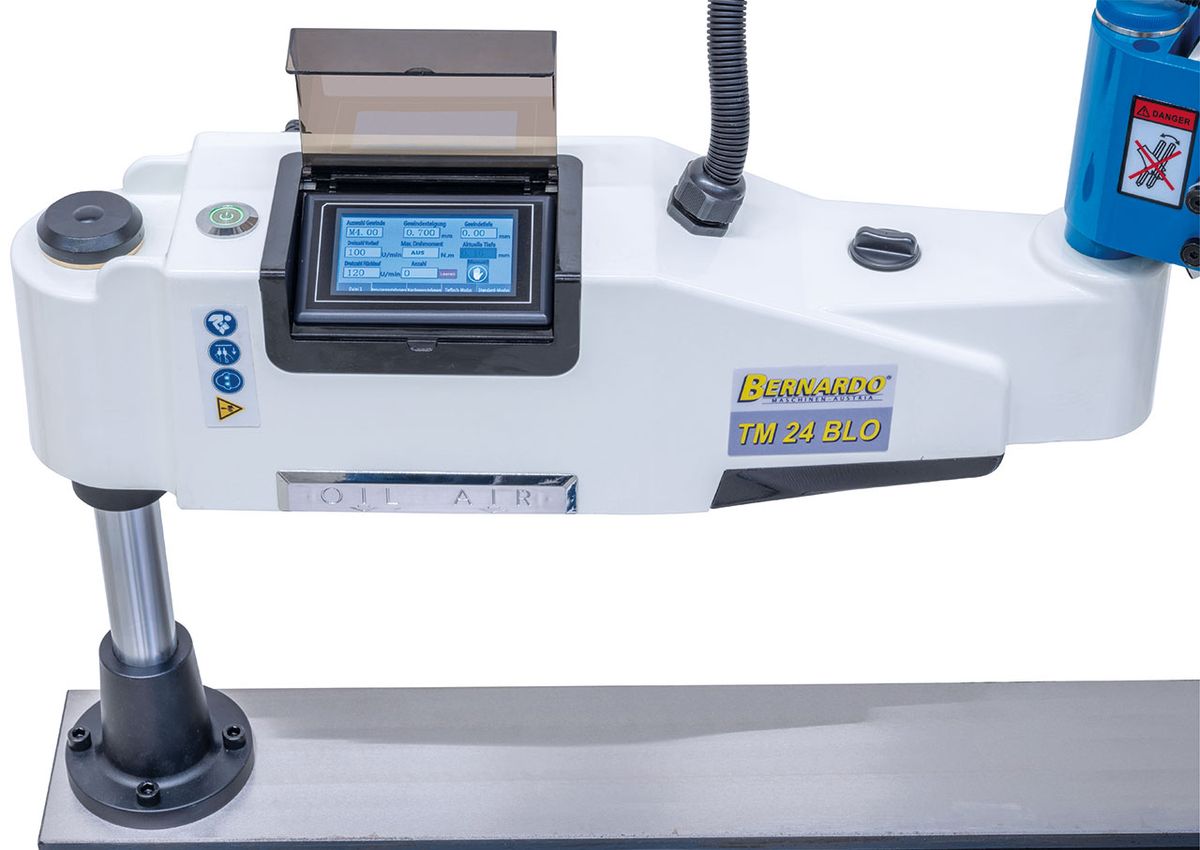

TM 24 BLO / R 1200 Electric Tapping Machine Bernardo 01-14191
Properties
- Standard with micro-spray system for constant cooling and minimal coolant usage
- Including blow-out device for removing the chips, thus optimal view of the drill hole
- Includes quick change chuck for use of taps for through and blind holes
- Tiltable motor unit for tapping at any required angle between 0° and 90°
- Higher accuracy compared to manual tapping, thread is guaranteed right angle (90 °)
- High productivity, significant time savings compared to manual tapping
- Quick-change chuck with integrated safety clutch prevents breakage of the tap drill
- Including swivel arm with large radius for easy positioning of the tap drill on the workpiece
- For tapping in steel, stainless steel, aluminum and non-ferrous metals
Technical specifications
|
Tap holes* |
M5 - M24 |
|
Spindle taper |
GT 24 |
|
Speed max. |
70 - 200 rpm |
|
Adjustable angle |
0° - 90° |
|
Max. working radius |
R 1200 mm |
|
Quick change chuck
|
DIN 376: M5-6 / M8 / M10 / M12 / M14 |
|
M16 / M18 / M20 / M22-24 |
|
|
Motor power |
1200 W |
|
Voltage |
230 V |
|
Weight approx. |
34 kg |
|
|
|
* Material strength 400 N/mm2
Standard accessories
- Operation via touchscreen
- Digital drill depth indication
- Micro-spray system
- Blow-out device
- Quick release tool holder
- Quick change chuck according DIN
- Electric motor
- 90° angle adjustment
- Mounting flange
Bernardo er et selskap fra Østerrike som har drevet salg av maskiner siden 1979. De har et stort lager på 7000m2 med mye maskiner og utstyr på lager for rask levering. De har stort utvalg av dreiebenker, boremaskiner, freser, platemaskiner, sager og mye mer.! De har også stort delelager for rask levering.
LTS Maskin er Bernardo sin hovedleverandør i Norge og vi kan levere alt av deres produktregister.
Last ned katalog nedenfor:
Metallmaskiner:
Generell katalog: EN
Platemaskiner
Generell katalog: EN
Tremaskiner
Generell katalog: EN
Bernardo leveres standard med 3x400v om ikke annet er spesifisert.
Riktig maskin til hvert bruk (se etter merkene nedenfor):
Hobby
Max. 150 h / year
Average usage:
2 h / day or 25% duty cycle
Semi-Professional
Max. 300 h / year
Average usage:
3 h / day or 50% duty cycle
Professional
Max. 600 h / year
Average usage:
3 h / day or 90% duty cycle
Industry
Max. 1500 h / year
Average usage:
8 h / day or 90% duty cycle
