VBS 310 Vertical bandsaw Bernardo 04-1785
The vertical bandsaws of the VBS-series are designed for cutting of various materials (for example steel, plastics, non-ferrous materials etc.) The application area is predominantly targeted at general production, tool and jig making and for the production of punching and cutting tools.
PROPERTIES
- Complete with LED-display to allow for easy speed setting

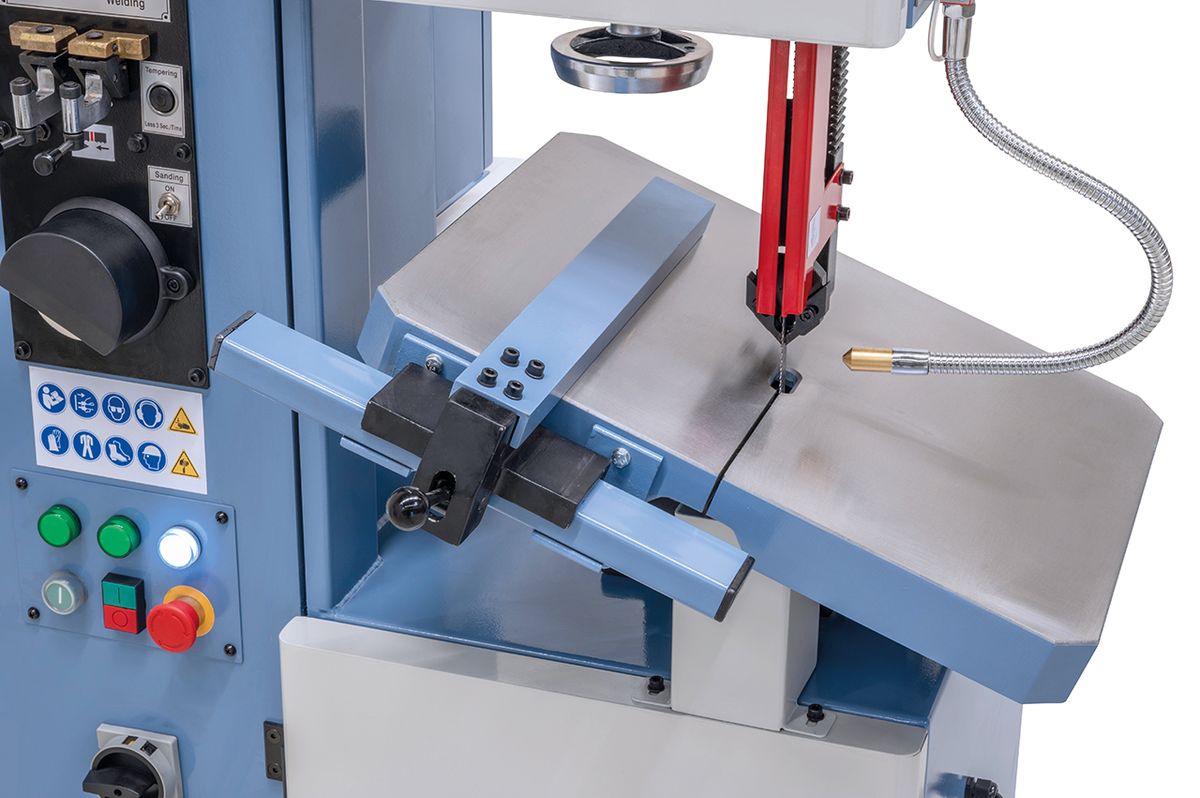

- Solid grey cast-iron table – the large surface improves safety aspects
- Blade welding device, annealing device, shear and grinder come standard
- Complete with stepless speed adjustment
- Solidly constructed steel body ensures smooth running
- High-quality bandsaw blade guide guarantees precise results
- Convenient cutting of irregular shaped workpieces
- 3 mm bandsaw blades are optionally available for radius cutting
TECHNICAL SPECIFICATIONS
|
Cutting width |
315 mm |
|
Cutting height |
185 mm |
|
Working height |
890 mm |
|
Cutting speed |
10 - 180 m/min |
|
Bandsaw blade width |
2885 mm |
|
Table size |
3 - 16 mm |
|
Size of additional table |
500 x 400 mm |
|
Table tilting range (in 4 directions) |
-15° to +45° |
|
Motor power |
0,55 kW |
|
Blade welding device |
2,4 kVA |
|
Machine dimension (L x D x H) |
960 x 800 x 1600 mm |
|
Weight approx. |
265 kg |
STANDARD ACCESSORIES
- Bandsaw blade
- Blade welding device with annealing device
- Working light
- Shear
- Grinder
- Chip brush
- LED digital readout
- Micro cooling system
- Frequency inverter
- Rip fence
Bernardo er et selskap fra Østerrike som har drevet salg av maskiner siden 1979. De har et stort lager på 7000m2 med mye maskiner og utstyr på lager for rask levering. De har stort utvalg av dreiebenker, boremaskiner, freser, platemaskiner, sager og mye mer.! De har også stort delelager for rask levering.
LTS Maskin er Bernardo sin hovedleverandør i Norge og vi kan levere alt av deres produktregister.
Last ned katalog nedenfor:
Metallmaskiner:
Generell katalog: EN
Platemaskiner
Generell katalog: EN
Tremaskiner
Generell katalog: EN
Bernardo leveres standard med 3x400v om ikke annet er spesifisert.
Riktig maskin til hvert bruk (se etter merkene nedenfor):
Hobby
Max. 150 h / year
Average usage:
2 h / day or 25% duty cycle
Semi-Professional
Max. 300 h / year
Average usage:
3 h / day or 50% duty cycle
Professional
Max. 600 h / year
Average usage:
3 h / day or 90% duty cycle
Industry
Max. 1500 h / year
Average usage:
8 h / day or 90% duty cycle
